Ecoals Co.

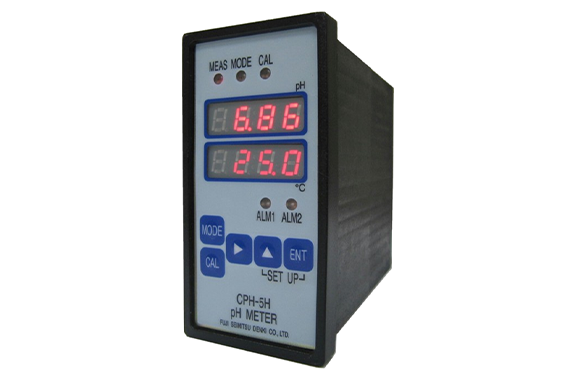

Ecoals CPH-5H
Manufacturer: Ecoals Co., Ltd.
Model: CPH-5H
Features
- Compact and lightweight
- High reliability
- Isolation output
- Automatic calibration
Specification
| Model | CPH-5H |
|---|---|
| Measuring range | pH 0~14pH temperature 0~100°C |
| Measurement method | Glass electrode method |
| indication | MAIN display LED 4 digits SUB display LED 4 digits |
| output | 4~20mA DC Isolated Output (Standard) Output range can be set arbitrarily |
| Alarm output | ALM1, ALM2 2 Circuit |
| Alarm Contacts | AC250V 5A (Resistive Load) |
| Alarm Actions | Arbitrary allocation to the upper or lower limit is possible |
| Control Operation | ON/OFF control or proportional control configurable |
| Supply voltage | AC90~AC240V 50/60 Hz Approx. 10VA |
| Dimensions | 48(W)×96(H)×130(D)mm |
| mass | Approx. 350g |
| remarks | Compatible with each temperature compensation electrode |
