Ecoals Co.

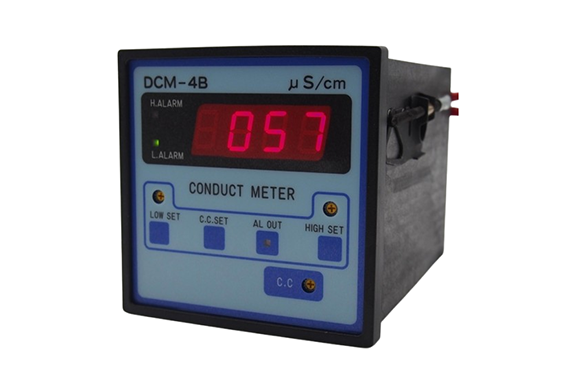

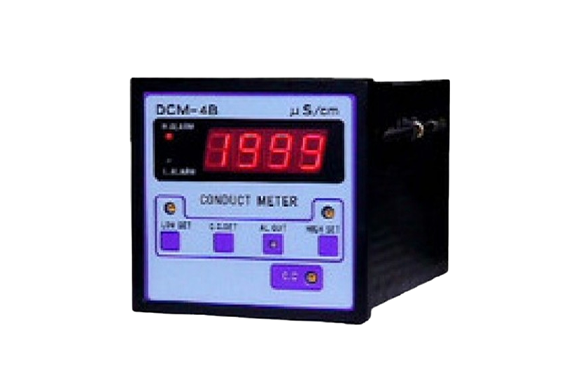

Ecoals DCM-4B
Manufacturer: Ecoals Co., Ltd.
Model: DCM-4B
Specification
| Name | Conductivity indicator regulator |
|---|---|
| Measurement method | AC 4 Electrode Method |
| Measuring range | 0~ 1999μ S/cm 0~ 19.99m S/cm 0~ 199.9mS/cm 1 range |
| output | 4~20mA DC Isolation Output |
| Alarm output | Upper and lower limits |
| Alarm Contacts | AC250V 5A (Resistive Load) |
| Supply voltage | AC85～264V 50/60Hz |
| Dimensions | 96(W)× 96(H)× 155(D)mm |
| mass | Approx. 0.8kg |
