Ecoals Co.

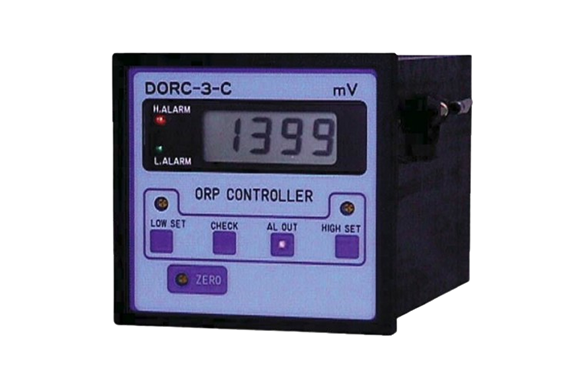

Ecoals DORC-3-C
Manufacturer: Ecoals Co., Ltd.
Model: DORC-3-C
Features
- Compact and lightweight
- High reliability
- Output signal, Isolated 4~20mA option
Specification
| Model | DORC-3-C |
|---|---|
| Measuring range | ±700mV display range is ±1400mV |
| Measurement method | Metal electrode method |
| indication | 3 1/2 LCD display |
| output | ± 700mV/±100mV non-isolated output DC4~20mA isolation output is optional |
| Alarm output | Upper and lower limits |
| Alarm Contacts | AC250V 5A (Resistive Load) |
| Supply voltage | AC100V or AC200V ±10% 50/60Hz |
| Dimensions | 96(W)×96(H)×155(D)mm |
| mass | Approx. 0.8kg |
