Ecoals Co.

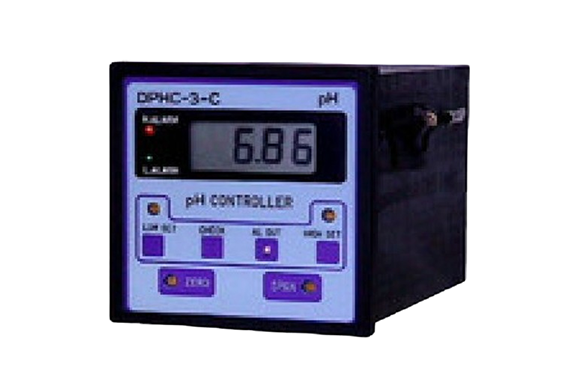

Ecoals DPHC-3-C
Manufacturer: Ecoals Co., Ltd.
Model: DPHC-3-C
Features
- Compact and lightweight
- High reliability
- Output signal, Isolated 4~20mA option
Specification
| Model | DPHC-3 |
|---|---|
| Measuring range | 0～14pH |
| Measurement method | Glass electrode method |
| indication | 3 1/2 LED display * DPHC-3C is LCD display |
| output | 0~14pH/± 100mV non-isolated output 4~20mA DC isolated output is optional |
| Alarm output | Upper and lower limits |
| Alarm Contacts | AC250V 5A (Resistive Load) |
| Supply voltage | AC100V or AC200V ±10% 50/60Hz |
| Dimensions | 96(W)×96(H)×155(D)mm |
| mass | Approx. 0.8kg |
