Ecoals Co.

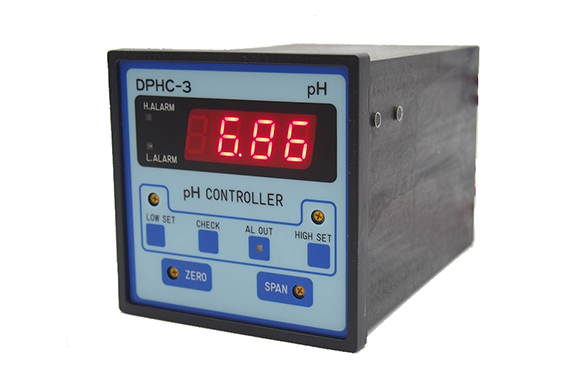

Ecoals DPHC-3 pH Meter
Manufacturer: Ecoals Co., Ltd.
Model: DPHC-3
DIN96 Compact Digital pH Controller Series
This is a small, lightweight, low-cost industrial pH regulator with a digital display that conforms to DIN96 standards for external dimensions. It has two upper and lower limit alarm outputs and can be used as a controller for industrial wastewater and production processes.
| Model | DPHC-3 |
|---|---|
| Measurement range | pH 0 to 14 |
| Measurement method | Glass electrode method |
| display | 3 1/2 LED display * DPHC-3C is LCD display |
| output | 0 to 14 pH/±100 mV non-isolated output DC4 to 20 mA isolated output is optional |
| Alarm Output | Upper and lower limits |
| alarm contact | AC250V 5A (resistive load) |
| Power supply voltage | AC100V or AC200V ±10% 50/60Hz |
| External dimensions | 96(W) x 96(H) x 155(D) mm |
| mass | Approximately 0.8 kg |
| List price | ￥150,000 |
