Ecoals Co.

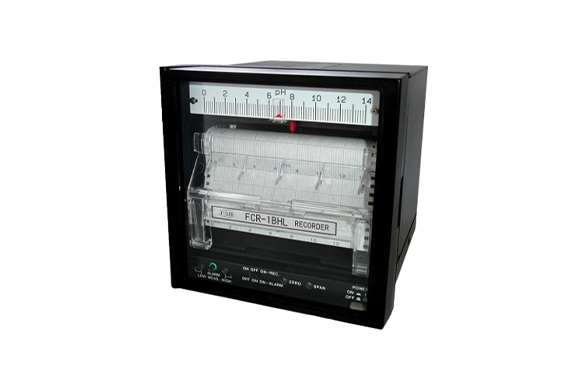

Ecoals FCR-1BHL
Manufacturer: Ecoals Co., Ltd.
Model: FCR-1BHL
Specification
| Item | Industrial Recorder |
|---|---|
| Recording Method | 1 Pen Type |
| Measurement Items | pH, ORP, Conductivity, DO ±5mV, 0~10mV, ±100mV 4~20mA (one of these) |
| Output | DCO~200mV (Note: Measurement items are only pH, ORP, and Conductivity) |
| Paper Feed | 10mm/h, 20mm/h, 40mm/h Gear Switching |
| Alarm Output | Upper/Lower Limit |
| Alarm Contact | AC250V 5A Resistive Load |
| Power Supply Voltage | AC100V or AC200V ±10% |
| Standard Accessories | ① Instruction Manual ② 1 Set of Recording Paper ③ 1 Set of Mounting Hardware ④ 1 Set of Driver and Wrench |
| Dimensions | 144(W) × 144(H) × 179(D) mm |
| Weight | Approx. 2.5kg |
