Ecoals Co.

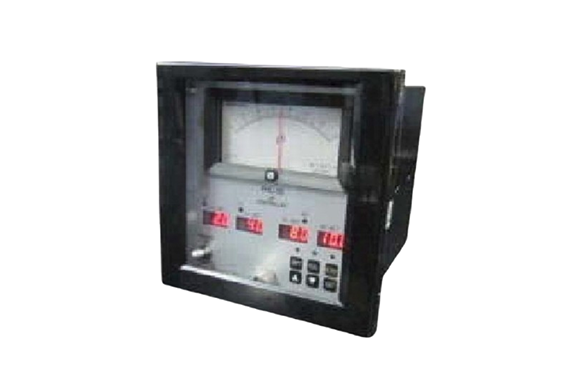

Ecoals PHC-5B
Manufacturer: Ecoals Co., Ltd.
Model: PHC-5B
Specification
| Model | PHC-5B |
|---|---|
| Measuring range | 0～14pH |
| Measurement method | Glass electrode method |
| indication | Indicator Analog Set Value 3 Digit LED |
| output | 0~14pH/± 100mV non-isolated output options ± 5mV or ± 500μA or 4-20mA DC isolated output |
| Supply voltage | AC90~240V 50/60 Hz Approx. 10VA |
| Alarm output | 2 circuits each for upper and lower limits |
| Alarm Contacts | AC250V 5A (Resistive Load) |
| Dimensions | 155(W)× 155(H)× 175(D)mm |
| Panel Cutting | 138× 138 mm |
| mass | Approx. 2.6kg |
