Ecoals Co.

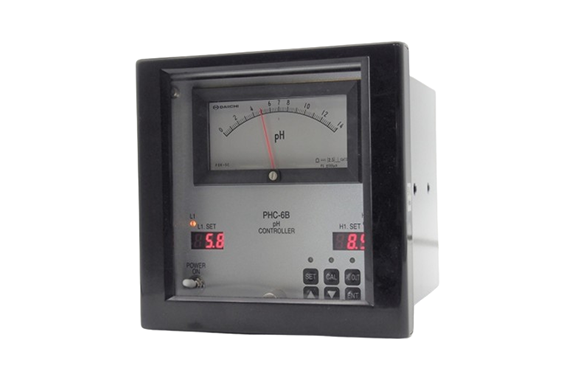

Ecoals PHC-6B
Manufacturer: Ecoals Co., Ltd.
Model: PHC-6B
Features
- Compact and lightweight
- Low cost
- Easy maintenance
- Employs an easy to use switch for alarm setting
Specification
| Model | PHC-6B |
|---|---|
| Measuring range | 0～14pH |
| Measurement method | Glass electrode method |
| indication | Indicator Analog Set Value 3 Digit LED |
| output | 0~14pH/± 100mV non-isolated output options with ± 5mV or ± 500μA or 4-20mA DC isolated output |
| Alarm output | Upper and lower limits |
| Alarm Contacts | AC250V 5A (Resistive Load) |
| Supply voltage | AC90~240V 50/60 Hz Approx. 10VA |
| Dimensions | 155(W)× 155(H)× 175(D)mm |
| Panel Cutting | 138× 138 mm |
| mass | Approx. 2.6kg |
