Ecoals Co.

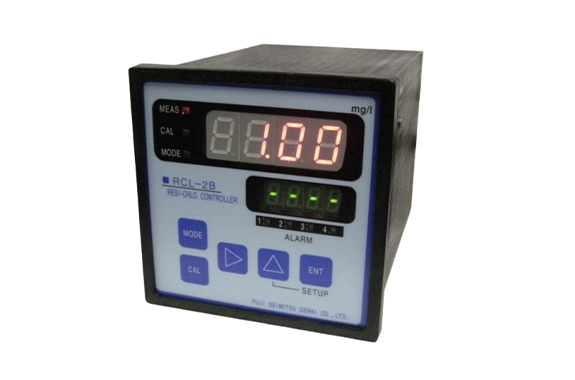

Ecoals RCL-2B
Manufacturer: Ecoals Co., Ltd.
Model: RCL-2B
Specification
| Model | RCL-2B |
|---|---|
| Measurement method | Direct galvanic method |
| Measuring range | Residual Chlorine: 0~4.00, 0~20.0, 0~200mg/l Selectable Temperature: 0~60°C |
| indication | MAIN display LED 4 digits SUB display LED 4 digits |
| output | 4~20mA DC Isolated Output (Standard) Output range can be set arbitrarily |
| Alarm output | ALM1, ALM2 2 circuits 1ab each ALM3 and ALM4 can be added as an option |
| Alarm Contacts | AC250V 5A (Resistive Load) |
| Control Operation | ON/OFF control or proportional control selectable |
| Combination electrodes | RL-100 (10mg/l or less for low concentrations) or RL-400 |
| Supply voltage | AC90~AC240V 50/ 60 Hz Approx. 10VA |
| Dimensions | 96(W)× 96(H)× 155(D)mm |
| mass | Approx. 0.5kg |
