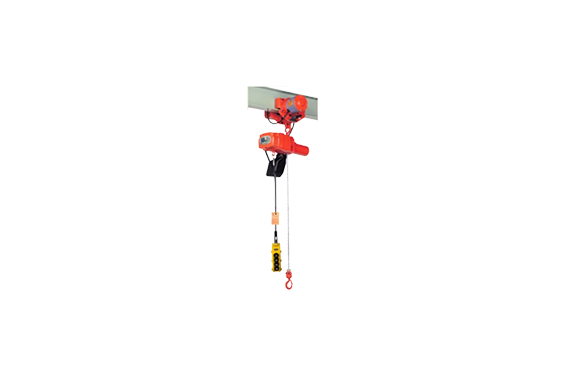

ELEPHANT Alpha Series Single Phase And Single Speed Type Electric Chain Hoist
Product Made in Japan
Manufacturer: ELEPHANT CHAIN BLOCK CO., LTD.
Model: Alpha Series
Alpha Series Features
A compact design that provides safety and high power.
Versatility and unrivaled performance are the keys to their great popularity.
Various accessories accommodate all operational environments.
A low-noise design satisfies today’s demands.
15kg, net weight with a short head.
Mechanical and power brakes provide outstanding braking.
Overload and overwind preventions are integrated in one safety device.
A superstrong white load chain for tough jobs.
Superstrong surface-hardened load chain with 80kgf/mm2 minimum breaking stress.
Upper and lower hooks and a safety latch ensure safe, smooth operation.
Capacity : 60kg – 500kg
ALPHA H : 1-phase single speed type
Specification
| Type | Single-speed type | |||||
| Model | For 100V-115V | aSM-006 | aSM-01 | aSM-016 | aSM-025 | aSM-050 |
| For 200V-230V | aHM-006 | aHM-01 | aHM-016 | aHM-025 | aHM-050 | |
| Capacity (kg) | 60 | 100 | 160 | 250 | 500 | |
| Headroom (mm) * | 425 | 425 | 425 | 425 | 505 | |
| Standard lift (m) | 3 | 3 | 3 | 3 | 3 | |
| Motor output (kW) | 0.3 | 0.3 | 0.6 | 0.6 | 0.6 | |
| Lifting speed (m/min) | 13 | 13 | 15 | 10 | 5 | |
| Traverse motor output (kW) | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | |
| Traversing speed (m/min: 50Hz/60Hz) | 10/12 | 10/12 | 10/12 | 10/12 | 10/12 | |
| Applicable traverse rail width (mm) | 75 100 125 | 75 100 125 | 75 100 125 | 75 100 125 | 75 100 125 | |
| Minimum traverse turning radius (mm) | 900 | 900 | 900 | 900 | 900 | |
| Minimum height of traverse rail (mm) | 100 | 100 | 100 | 100 | 100 | |
| Net weight (kg) | 32.5 | 32.5 | 34.5 | 34.5 | 37 | |
1)*The headroom slightly differs according to the size of the applicable traverse rail.
2)The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
3)The power cord of 0.5m extending from the trolley (3-core: 1 pc for earth) is supplied.
Dimensions
| Rail width W (mm) | A | B | C |
| 75 | 25 | 167.7 | 203.5 |
| 100 | 50 | 180.2 | 216 |
| 125 | 75 | 192.7 | 228.5 |
Note1: The A, B, C dimensions change according to the width of the applicable rail.
Alpha Series Design
