ELEPHANT (Zojirushi), Lever Hoists, Lifting

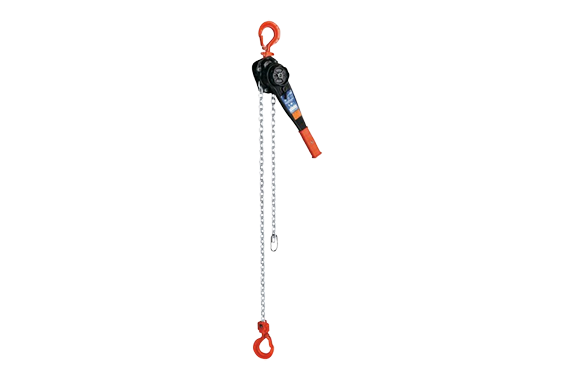

ELEPHANT YA-50 Lever Hoists
Product Made in Japan
Manufacturer: ELEPHANT CHAIN BLOCK CO., LTD. (Zojirushi)
Model: YA-50
Features
Elephant’s high-tech load chains achieve DIN 5684, one of the world’s strictest standards. This is the special heat-treated load chain of Grade V (100kgf/mm2) whose tensile strength far surpasses JIS Grade V.
Safety factor 5 times.
Load chains, hooks, and braking parts have 5 times the safety factor.
Stronger hook and safety latch.
Tip-supporting safety latch brings easy handling.
Improved shape of the lever.
Round shape lever handle brings easy operation.
Single action free spooling.
When loading, it automatically brakes.
Specification
| Model | YA-50 | |
| Capacity (ton) | 0.5 | |
| Standard lift (m) | 1.2 | |
| Headroom (mm) | 240 | |
| Hand effort to lift full working load (kg) | 37 | |
| Load chain | Diameter (mm) | 4.3 |
| No. of falls | 1 | |
| Grade of chain | V | |
| Net weight (kg) | 2.8 | |
