Electronic Magnetic Industry Co.

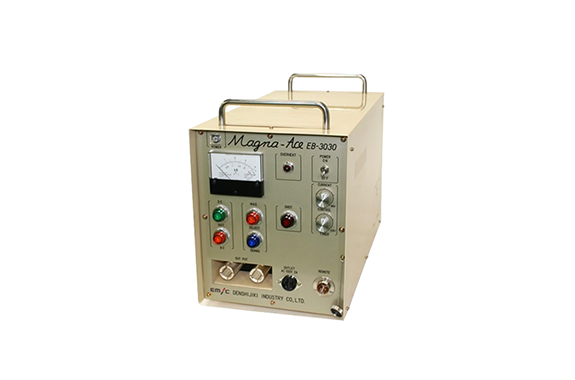

EMIC EB Single‐phase half-wave magnetized power supply
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Mode: EB
Features
- The current regulation method is small and lightweight because of the SCR phase control method.
- The magnetized output cable is a connector system, so the cable can be easily attached and detached.
- You can.
- Combined with prod contactor & inspection and processing equipment, widely used in general. It can be used.
- There are also types of DC demagnetization and constant current control system as options.
Specifications
| Model | EB-3030 | EB-4A | EB-5A | |
| Power input (rated) | Single Phase AC 200V 50/60Hz 60A | Single Phase AC 200V 50/60Hz 150A | Single Phase AC 200V 50/60Hz 200A | |
| Magnetization output | DC | 3,000A (single-phase half-wave rectifier high) | 4,000A (single-phase half-wave rectifier wave high) | 5,000A (single-phase half-wave rectifier high) |
| Interaction | 3,000A (wave height) | 4,000A (wave height) | 5,000A (wave height) | |
| Current Regulation | Contactless stepless | |||
| Power-up time | 0.5 seconds ~ 2 seconds | |||
| Accountability Cycle | 0.5 seconds power-on, 5-second pause (2 seconds power-on, 20 seconds pause) | |||
| Load Conditions | 100mm2 Magnetized Cable 10m Short Circuit | 150mm2 Magnetized Cable 10m Short Circuit | 200mm2 magnetized cable 10m short circuit | |
| Demagnetization output | AC current attenuation method rated at → maximum 0A | |||
| Body Dimensions (mm) | 280W×550D×360H | 600W×550D×850H | 700W×630D×1,054H | |
| wheel | without | Movable front wheels, fixed rear wheels | ||
| mass | Approx. 55kg | Approx. 100kg | Approx. 130kg | |
