Electronic Magnetic Industry Co.

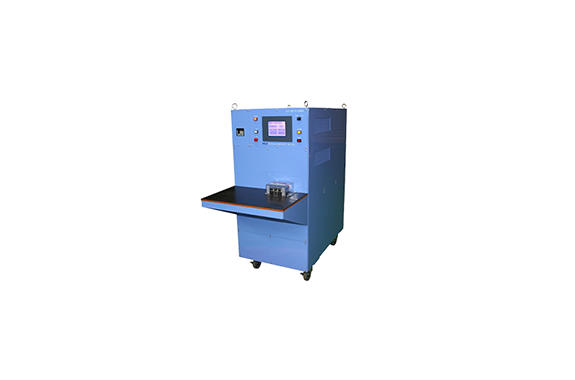

EMIC ES type ultra-low impedance magnetization power supply
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Model: ES type
Features
- The internal circuit design of the power supply has been completely renewed, and low impedance has been pursued to the ultimate.
- Equipped with a new circuit, it realizes low voltage and high current, and high Hc for IT-related ultra-small motors
It is effective for magnetizing magnets. - The short range of energization time and the reduced heat generation improve the durability of the magnetized yoke.
Specifications
| Model | ES-1510-30L |
| Input Power Supply | Single-phase AC200V 50/60Hz approx. 20A |
| Maximum allowable output current | 30,000A |
| Charging voltage | DC50～1,500V |
| Charging time | 5 seconds |
| Capacitor capacity | 1,000μF |
| Power-up time | Approx. 100 μsec or more (varies with load) |
| Main control element | SCR |
| Dimensions (mm) | 500W×800D×1,000H |
| mass | Approx. 180kg |
