Electronic Magnetic Industry Co.

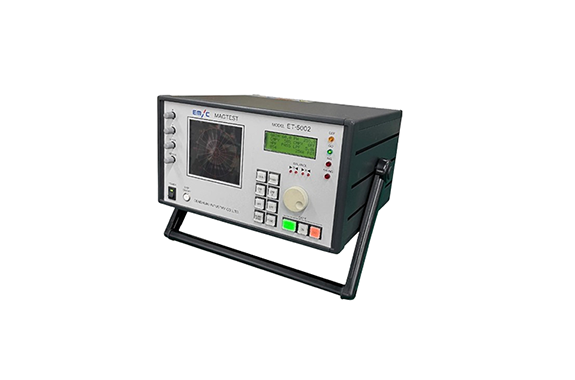

EMIC ET-5002 Eddy current flaw detector
Manufacturer: Electronic Magnetic Industry Co., Ltd
Model: ET-5002
Features
- For probe coils
Discs, Hubs, Spindles, Valve Lifters, Rack Shafts, Stat Bolts,
Automatic flaw detection of valve seats, bearings, ball joints, etc. - For through coils
Automatic flaw detection of pipes and wires such as stainless steel, brass, and aluminum
Specifications
| Model | ET-5002 |
| Power input | AC 100V～240V 50／60Hz |
| Test Frequency | Standard 256kHz |
| Sensitivity range | 0~60dB 0.2dB Step Variable |
| Phase range | 0~359.5° 0.5° Step |
| balance | Follow-up autobalancing (8 variable balance speeds) |
| Body Dimensions (mm) | 320W×280D×177H (excluding protrusions) |
| mass | Approx. 7.5 kg |
