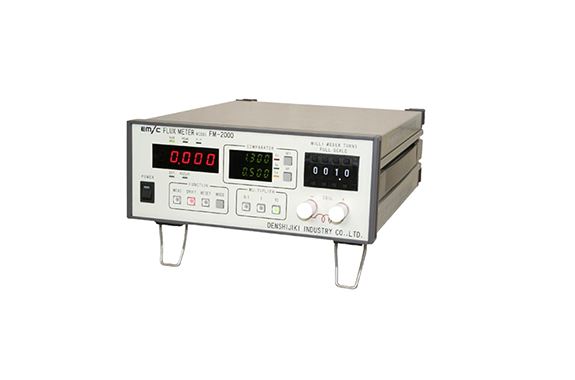

EMIC FM-2000 Multi-function flux meter
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Model: FM-2000
Features
- Three types of measurement modes as standard
- Control inputs allow for control and automation of measurement operations
- RS-232C standard equipment allows measurement data management on a personal computer
- Input power supply AC100~240V and wide design can be used without switching
Specifications
| Measuring range | 0.1mWb, 1mWb, 10mWb (when MILLI WEBER TURNS FULL SCALE 001.0 is set) |
| Viewing range | 0.1μWb~9.999Wb/F.S.・Turns |
| Measurement Mode | Normal, Peak Hold, Peak to Peak Hold |
| Measurement accuracy | ±1%/F.S.±1digit (when MILLI WEBER TURNS FULL SCALE 001.0 or higher is set) |
| Drift performance | MULTIPLIER 0.1:±1%/F.S.(30SEC) 1.0:±1%/F.S.(60SEC) 10:±1%/F.S.(60SEC) (TIME UNTIL THE INSTRUCTION CHANGES BY ±1% with a change in magnetic flux of the F.S.) ( MILLI WEBER TURNS FULL SCALE 001.0 or higher) |
| Hold time | MULTIPLIER 0.1:±1%/F.S.(30SEC) 1.0:±1%/F.S.(60SEC) 10:±1%/F.S.(60SEC) (Time to ±1% change in instruction with F.S. flux change) (MILLI WEBER TURNS FULL SCALE 001.0 or higher) |
| Output Terminals | DC±1V/F.S. (1.0V when the digital display is 1.000) |
| Comparator function | 1) Judgment input Upper / lower limit setting including polarity +1999~0~-1999 2) Judgment operation about 2 times/second 3) Judgment display ・Hi (red LED): upper limit setting value and indicator value ・Go (green LED) : upper limit setting value≧ indicating value≧ lower limit setting value ・Lo (yellow LED) : indicator value< lower limit setting value 4) Judgment output: Hi/Go/Lo isolated open collector output, sink current: 20mA Max (30V or less), output saturation voltage: 1.2V or less at 20mA, |
| External Control Input | Optocoupler Isolated Input , Measurement Start Input , Reset Input |
| RS-232C Communication Speed | 9,600bps |
| power | Single-phase AC100~240V 50/60Hz |
| Specification Temperature Range | 5～40℃ |
| Dimensions (mm) and mass | 266W (including handle) ×116H×(370)D Approx. 3.6kg |
