Electronic Magnetic Industry Co.

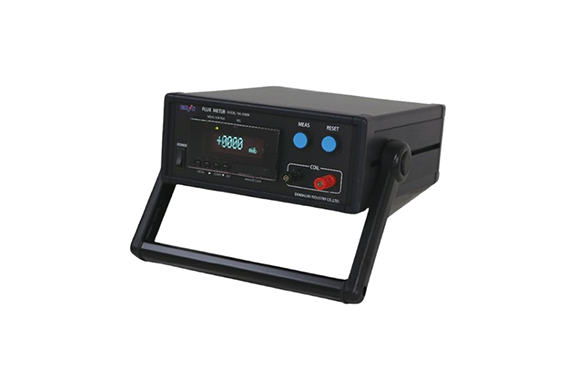

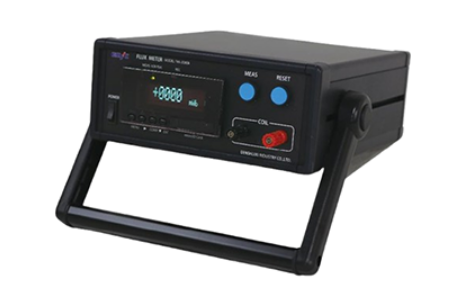

EMIC FMI-2000R Compact flux meter
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Model: FMI-2000R
Features
- 1 function, 1 key, so easy to operate
- Stored the measured values and results at the time of judgment on the microSD card
- Control input can control the measurement operation and can be automated
- Power input AC100~240V support
Specifications
| Measuring range | 2.000mWb, 20.00mWb, 200.0mWb, 2000mWb |
| Measurement Mode | NOR: Normal (polar), PEAK: Peak hold (non-polar). PEAK to PEAK: Peak to Peak (non-polar) |
| Measurement accuracy | ±1％/F.S. |
| Hold time | ±1％/F.S.（60sec） |
| Analog output | DC±2V/F.S. |
| Comparative judgment output | Hi/Pass/Lo Isolated Open Collector Output |
| Externally controlled output | Measurement Start Input (MEAS), Reset Input (RESET), Coil Break (COIL), External Trigger (TRG) |
| RS-232C Communication Speed | 9,600、19,200、38,400bps |
| power | Single-phase AC100~240V 50/60Hz (AC adapter input) |
| Operating temperature range | ＋10～＋40℃ |
| Dimensions (mm) and mass | (253) W×(94)H×(290)D Including handle, terminal, and leg Approx. 2kg |
