Electronic Magnetic Industry Co.

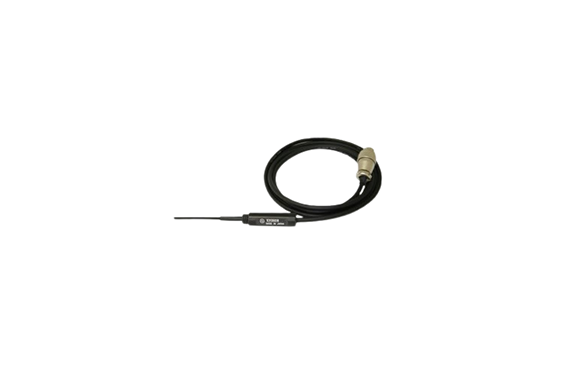

EMIC T-401, A-301, T-301 Hall Probes Old 4000 Series
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Model: T-401, A-301, T-301
Specifications
| Model | T-401 | T-301 | A-301 | |
| type | Transverse | Transverse | Axial | |
| Element Dimension (mm) | 1.8×5.3 | 1.5×1.7 | 1.5×1.7 | |
| T-Probe Thickness (mm) | 1 | 1 | 6φ | |
| Probe linearity (less than 1T) | ±2% | ±3% | ±3% | |
| Operating temperature range | -20～70℃ | -20～70℃ | -20～70℃ | |
| Adaptable models | GM-4002 | 〇 | ― | ― |
| GM-301 | ― | 〇 | 〇 | |
| Cable Length (m) | 1.9 | 1.0 | 1.0 | |
