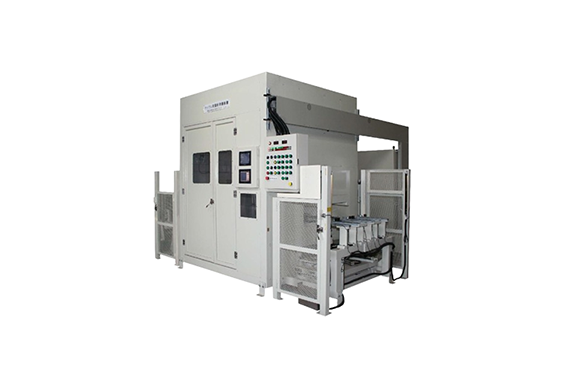

EMIC Image Processing Magnetic Particle Detector

Manufacturer: Electronic Magnetic Industry Co., Ltd.
Model: Image Processing Automatic Magnetic Particle Flaw Detector

Features

The magnetization method is a multi-alternate magnetization method, which can detect defects in all directions in one magnetization operation.
Depending on the shape of the test object, the magnetization method and transport mechanism will be individually corresponded.
By incorporating magnetic particle concentration control devices into the system, it frees the operator from tedious tasks such as controlling and replenishing
magnetic particle concentrations.
Equipped with a high-sensitivity CCD camera, combined with the latest image processing software,
high-speed real-time inspection is now possible.

1. Image processing equipment

OS	Windows 10 (PC-based)
monitor	1366×768 or more
Camera Connection	1~4 units
Image processing content	Masking, defect determination, and length indication

2. Image input section

camera	High-sensitivity 3CCD camera (640×480 pixels)
lens	C-mount lenses

3. Light source

name	UV flaw detector lamp	UV LEDs
Lighting method	High frequency lighting method	Pulse lighting system
Center wavelength	365nm	365nm

4. Inspection fluid tank

Tank capacity	150L (Decision to Match)
Stirring method	with pump motorcirculating

5. Magnetization method

method	Multiple alternating magnetization method.
Magnetized power supply	Constant current control
Magnetization Current	AC、DC、100A～3,000A
Current Settings	Preset Formula

6. Test fluid management

method

with automatic magnetic particle supply mechanism for concentration management
