Electronic Magnetic Industry Co.

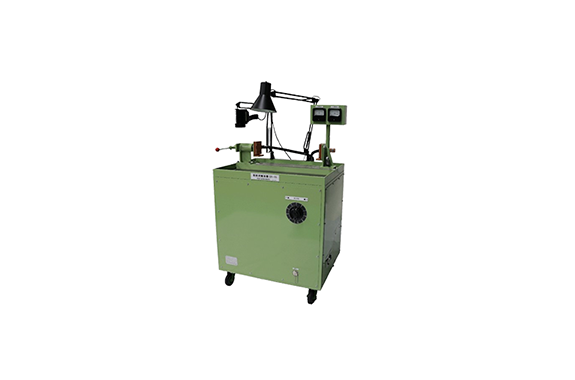

EMIC SR-15 Magnetic Particle Detector for Flaw Testing Training
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Mode: SR-15
Specifications
| Power input (rated) | AC 100V 50／60Hz 30A | |
| Magnetization output | direct current | 1,500A (single-phase half-wave rectifier wave high) |
| alternating current | 1,500A (wave height) | |
| Current Conditioning | Slide duck adjustment method | |
| Power-on time | Free time (up to 20 seconds) / 5 seconds energization 60 seconds pause | |
| Load Strips | Φ25mm ×350mm copper rod crimped between the two electrodes | |
| Demagnetization output | AC current attenuation method 1,500A~0 | |
| electrode | Maximum opening | 50~500mmmanualsliding |
| Contact surface and material | 100mm×100mm copper mesh | |
| Body Dimensions (mm) | 800W×650D×920H | |
| mass | Approx. 100kg | |
