Electronic Magnetic Industry Co.

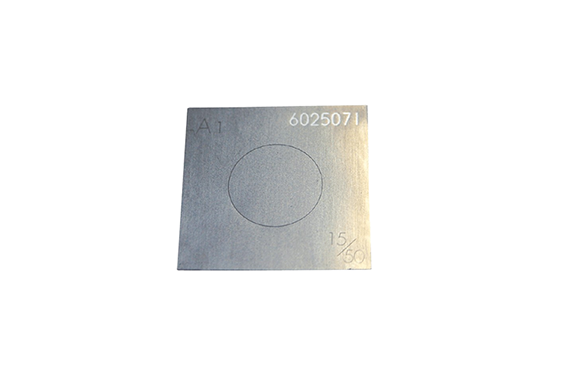

EMIC STP-1 JIS-A Standard Specimen
Manufacturer: Electronic Magnetic Industry Co., Ltd
Model: STP-1
Features
When using, make sure that the grooved surface and the flaw detection surface are in close contact.
Secure with appropriate adhesive tape. At this time, the test surface to be pasted is
The surface should be such that the specimen can adhere to the entire surface.
Type A standard specimens are determined by the Japan Non-Destructive Testing Association.
Do not use if there is a change in shape, dimensions, or material at the beginning of acquisition.
Specifications
| kind | material | size | ||||
| The first type | ＪＩＳＣ２５０４, Electromagnetic soft iron plate, type 1 annealing material
| Thickness of the board | 50 | 100 | ||
| Groove depth | 7 | 15 | ||||
| The second type | ＪＩＳＣ２５０４, Electromagnetic soft iron plate, type 1 unannealed material | 15 | 30 | |||
| 30 | 60 | |||||
