Exen, High Frequency Generator
EXEN HAG122MH Lightweight High Frequency Generator
Products Made In Japan
Manufacturer: EXEN
Model: HAG122MH
This generator is designed specifically for high-frequency 48 V vibrators. A white cap is used to protect against mortar adherents, thereby alleviating the burden of maintenance. Equipped Honda engine.
Features
This special-purpose generator is designed as a power supply unit for the high-frequency series of vibrators in city areas, mountainous areas, and other locations where commercial mains is unavailable or cannot be led in.
A white cap is used.
A white cap is used to protect the machine from splashes of concrete when poured on the worksite. This alleviates the burden of after-project maintenance.
Exen lightweight generators are fully-enclosed, external fan types that protect against the ingress of foreign matter. They are equipped externally with a wind-inducing cover, and a powerful fan is used to realize an even more efficient cooling system.
A stackable frame structure
The frame structures of various models are stackable and easy to manage for different models, and particularly helpful in storage in cramped warehouses.
Equipped with a no-fuse circuit-breaker
The models are protected from burns due to vibrator overload and burns on the generator side by installing a no-fuse breaker (NFB) inside the wall outlet box.
An oil sensor as standard equipment
The engine incorporates an oil sensor mechanism (a seizure-prevention automatic engine stopper). If engine oil runs out during operation, the engine stops automatically. *If oil is available to a specified level but the machine is tilted, then the oil sensor mechanism may be activated to stop the engine.
Specification
Model | High-frequency engine generator | ||||||||
---|---|---|---|---|---|---|---|---|---|
Output (kVA) |
Voltage (V) |
Current (A) |
Frequency (Hz) |
Engine | Nos. of socket outlet |
Weight (kg) |
|||
Model | Output (kW) |
Continuous rated output (kW/min-1) |
|||||||
HAG122MH | 2.2 | 48 | 26.5 | 240 | GX160T2 VXJE | 3.6 | 2.9/3600 | 2 | 36 |
HAG134MHA | 3.4 | 40.9 | GX200T2 VXJE | 4.1 | 3.7/3600 | 3 | 40 |
(Imperial System)
Model | High-frequency engine generator | ||||||||
---|---|---|---|---|---|---|---|---|---|
Output (kVA) |
Voltage (V) |
Current (A) |
Frequency (Hz) |
Engine | Nos. of socket outlet |
Weight (lb) |
|||
Model | Output (kW) |
Continuous rated output (kW/min-1) |
|||||||
HAG122MH | 2.2 | 48 | 26.5 | 240 | GX160T2 VXJE | 3.6 | 2.9/3600 | 2 | 79.3 |
HAG134MHA | 3.4 | 40.9 | GX200T2 VXJE | 4.1 | 3.7/3600 | 3 | 88.1 |
Product masses include that of the engine oil.
Dimensions, installation, control panel

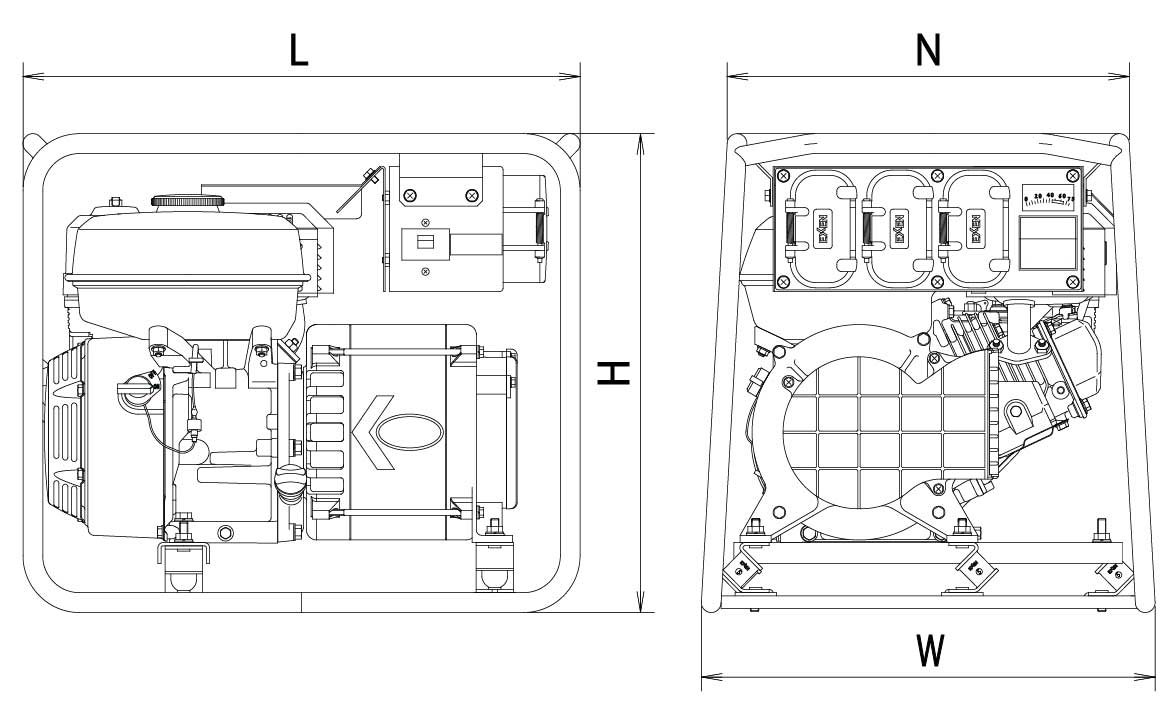

Product dimensional drawings
Product dimensional table
Model | L | W | H | N |
---|---|---|---|---|
HAG122MH | 540 | 440 | 521 | 390 |
HAG134MHA |
(Imperial System)
Model | L | W | H | N |
---|---|---|---|---|
HAG122MH | 21.2 | 17.3 | 20.5 | 15.3 |
HAG134MHA |
