EXEN AOC-1B Control Panel (Air Knocker / Mini Blaster)

Products Made In Japan
Manufacturer: EXEN
Model: AOC-1B

Control panel allowing the number of impacts to be set only by pneumatic control

This product is used for the following applications:

  • 01OPECON is used if RKV is less frequently used in the grain forage silo in aggregate plant
  • 02Prevention of blockage in the recycle fuel (capsule of compressed wood) supply hopper
  • 03Prevention of blockage in the glass cullet storage hopper
  • Features

    OPECON (AOC-1B) air operation controller is the simplest control panel that allows the number of ON/OFF impacts of the relay knocker and Mini Blaster to be set only by pneumatic control, without electric connection and electric timer device.

    Operable only by air supply

    OPECON (AOC-1B) air operation control is a control panel that can be operated only by air supply. One-time operation of the manual valve in this equipment allows the relay knocker and Mini Blaster to be operated continuously without electric timer.

    The simplest control panel

    Pneumatic Operation Controller (Opecon AOC-1B) is a control panel that is convenient for easy continuous run by manual operation if, for example, takes time before electric work. It is an inexpensive and simple control panel that allows the air knocker to be operated only by pneumatic control.

    Control panel (Air knocker / Mini mini blaster) Opecon AOC-1B

    Easy setting of time interval between impacts

    The time interval between actuation of Air Operation Controller (AOC-1B) can be set with the control knob of the number of times for Air Operation Controller while knocker or blaster is actuated. Because the adjustment can be made during operation, the actuation time can be changed while the operation sound is heard.

    Control panel (Air knocker / Mini mini blaster) Opecon AOC-1B

    One control panel (AOC-1B) can operate up to three knockers

    Although one control panel can drive one air knocker in the conventional piping, it can drive up to three air knockers via relay piping. Thus, several air knockers mounted on the same hopper can be driven by one control panel, which reduces the expenses.
    *For the combination of flow aid system, also refer to “Flow aid equipment combination”.

    Control panel (Air knocker / Mini mini blaster) Opecon AOC-1B

    Indoor/outdoor use type with safe structure

    OPECON (AOC-1B) can be used safely in any work environment regardless of indoors or outdoors.

    Specification

    AOC-1B

    Model Installation Scope Power Supply
    (MSI)
    Working
    Pressure
    (MPa)
    Working
    Fluid Temperature
    (℃)
    Working Times
    Per/min.
    Approx.
    Dimension
    (LXWXH)(mm)
    Weight
    (kg)
    AOC-1B Indoor,Outdoor Air Control 0.3-0.7 5-50 12-60 171X67X200 1.4

    (Imperial System)

    Model Installation Scope Power Supply
    (MSI)
    Working
    Pressure
    (PSI)
    Working
    Fluid Temperature
    (°F)
    Working Times
    Per/min.
    Approx.
    Dimension
    (LXWXH)(Inch)
    Weight
    (ib)
    AOC-1B Indoor,Outdoor Air Control 44-102 41-122 12-60 (6-47/64 x 2-41/64 x 8-17/64) 3.1

    *There may be a variation in the number of actuations because this product is pneumatically controlled.

    Dimensions, installation, control panel

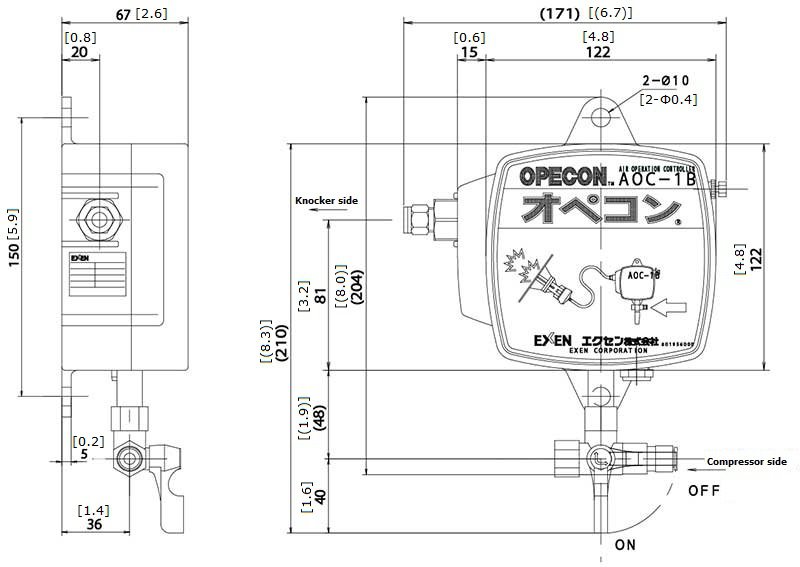

    Product dimensional drawings
