EXEN ERC16DSC Semi-self-propelled Concrete Saw Wet Type
Products Made In Japan
Manufacturer: EXEN
Model: ERC16DSC
Safety designed according to safe standards set forth in relevant Japanese Industrial Standards. With high rigidity and low center of gravity, these products achieve excellent cutting
Features
This Exen Semi-self-propelled concrete saw emphasizes cutting performance, durability, rustproofness, and safety. With the chassis of ECR14DC to 18DSC made of ductile aluminum, these products are machined with high precision, high rigidity, and low center of gravity to achieve stable operability and excellent cutting capacity. This concrete cutter achieves particularly high worker safety by being designed to meet adequately the safety requirements for JIS-compliant road works machinery. Also available are optional blades (for asphalt and concrete), diamond blades (P/C series), designed specifically for the ERC series.
Designed to meet adequately the work requirements for road works machinery
Exen concrete cutters, safely designed according to the requirements of the safety standards for JIS-compliant road works machinery, achieve high work safety.
Excellent cutting performance
A body-supporting component and therefore the most important, the chassis is made of ductile cast iron, with highly precise machining, high rigidity, and low center of gravity, thereby achieving stable operability and cutting performance.
Eco-friendly engine
It is equipped with environmentally friendly exhaust gas self-regulating engine and is drawing out stable cutting performance.
In pursuit of durability and rustproofness
The blade case, belt cover, tank house, handle, and other main components are made of rust-resistant stainless steel (SUS) in pursuit of durability and rustproofness.
Equipped with a large-capacity water tank (with a punch plate)
These products come equipped with a large-capacity polypropylene tank of the largest order of its class, robust and durable, which cannot gather rust and allows disconnection without keeping a hose attached from outside at all times. The punch plate can serve as a filter for use in case accumulated water is used. Also available is a hose insertion port, which facilitates water supply (for all models). Water residues can be easily disposed of through a drain valve, which is installed as standard equipment
Equipped with a 3VX
All models come equipped with a low-edge cog type 3VX belt. The cogged belt reduces the incidence of belt breaks and revolution losses. These cutters are also designed with higher safety by a safe structure that prevents your hand from going behind the belt cover.
Blade attachment made easy
The blade case is so structured as to be installed in a single touch, which facilitates blade attachment. Note: Numbers indicated as part of each concrete cutter model name are expressed in inches for the largest diamond blades. (Example: ERC14DC means that it accommodates 14-inch parts) Exen concrete cutters are standardized at a diamond blade shaft hole diameter of 27 mm for all models.
Higher cooling efficiency with centrifugal water injection into the blade
The blade holder is of the centrifugally dispersion type that allows cooling water to reach all corners of the blade by centrifugal force. This increases cooling effect, along with cutting performance and blade life.
Engine throttle lever standard equipment
Available as standard equipment is a throttle lever with which to adjust engine revolution at hand.
Freely controlled with a single handle
Designed based on the concept that when half semi-propelled, the cutter can be moved up and down, run, and stopped with a single operation handle. The stainless steel operation handle can simply be replaced with an up/down shaft and a travel shaft. When inserted backwards, the handle displays its performance as parking brakes. The machine can be operated in isolation. You can therefore enjoy a large operation radius and alleviate the load for moving up and down and traveling, thereby facilitating your work. With a large instruction sticker, the product works to minimize the incidence of operation errors.
A moving up/down stopper fixes depth
When cutting depth determined, you have only to tilt the stopper lever in the fixing direction to fix depth.
Equipped with a cell starter
The ERC16DSC and ERC18DSC come equipped with a cell starter (with batteries). In these models, therefore, you can start the engine with the starter key just as you start a car. For large engines, starting a recoil starter requires a force. The cell starter increases operability that much more.
Specification
Model | Performance | ||||||
---|---|---|---|---|---|---|---|
Blade (mm) |
Blade hole (mm) |
Max.cutting depth (mm) |
Cutting depth adjustment | Travel system | Blade cooling system |
water tank capacity (L) |
|
ERC14DC | 256-356 (10-14in) |
27 | 70-120 | Hand screw type |
Handle run |
Gravity feed water system |
50 |
ERC16DSC | 256-418 (10-16in) |
70-150 | |||||
ERC18DSC | 256-469 (10-18in) |
70-175 |
Model | Dimension | Engine | ||||||
---|---|---|---|---|---|---|---|---|
Overall lenght (mm) |
Overall width (mm) |
Overall height (mm) |
Weight (kg) |
Model | Max.output (kW) |
Continuous rated output (kW/min-1) |
Starting system | |
ERC14DC | 950 | 515 | 840 | 131 | GX200T2 SHJE | 4.1 | 3.7/3600 | Recoil |
ERC16DSC | 1000 | 148 | GX270T2 SHEE | 6.3 | 5.1/3600 | Recoil/Sell starting |
||
ERC18DSC | 149 |
(Imperial System)
Model | Performance | ||||||
---|---|---|---|---|---|---|---|
Blade (in) |
Blade hole (in) |
Max.cutting depth (in) |
Cutting depth adjustment | Travel system | Blade cooling system |
water tank capacity (gal) |
|
ERC14DC | 10.1~14.0 (10-14in) |
1.1 | 2.8~4.7 | Hand screw type |
Handle run |
Gravity feed water system |
13.2 |
ERC16DSC | 10.1~16.5 (10-16in) |
2.8~5.9 | |||||
ERC18DSC | 10.1~18.5 (10-18in) |
2.8~6.9 |
Model | Dimension | Engine | ||||||
---|---|---|---|---|---|---|---|---|
Overall length (in) |
Overall width (in) |
Overall height (in) |
Weight (lb) |
Model | Max.output (kW) |
Continuous rated output (kW/min-1) |
Starting system | |
ERC14DC | 3’1″ | 1’8″ | 2’9″ | 288.8 | GX200T2 SHJE | 4.1 | 3.7/3600 | Recoil |
ERC16DSC | 3’3″ | 326.3 | GX270T2 SHEE | 6.3 | 5.1/3600 | Recoil/ Sell starting |
||
ERC18DSC | 328.5 |
*Product masses include that of the engine oil.
Dimensions, installation, control panel

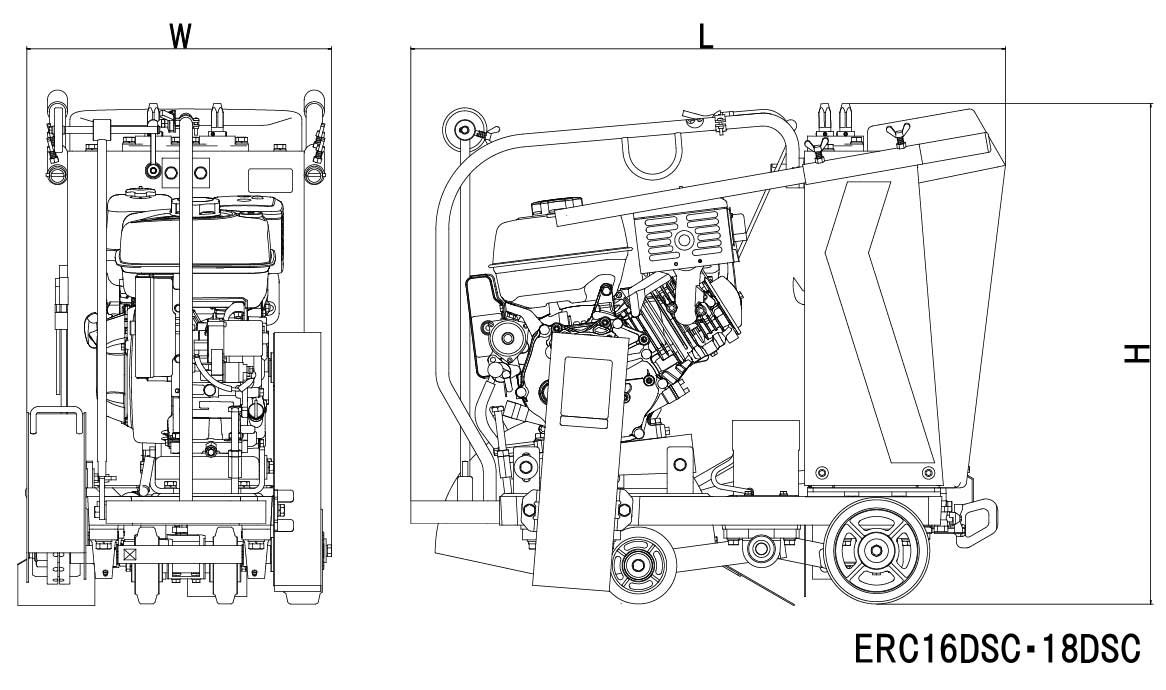

Product dimensional table
Model | Dimension(Storage) | ||
---|---|---|---|
L | W | H | |
ERC14DC | 950 | 515 | 840 |
ERC16DSC | 1000 | ||
ERC18DSC |
(Imperial System)
Model | Dimension(Storage) | ||
---|---|---|---|
L | W | H | |
ERC14DC | 3’1″ | 1’8″ | 2’9″ |
ERC16DSC | 3’3″ | ||
ERC18DSC |
