EXEN ESB100 Soft Disk

Products Made In Japan
Manufacturer: EXEN
Model: ESB100

Easy Installation! Small powerful blaster with 360-degree injection via soft disk

This product is used for the following applications:

  • 01.Used for hopper in which powder adheres to the wall surface in the powder plant
  • 02.Prevention of blockage in the positive and negative electrode storage hopper in the secondary battery material manufacturing plant
  • 03.Elimination of blockage of fish bait
  • 04.Elimination of blockage of coal
  • Features

    Small pneumatic soft disk blaster blasts air in 360 degrees from the disk-shaped injection port in order to eliminate adhesion of blockage of powder. As compared with the conventional disk aeration type, this employs the method for blasting the air compressed in the tank, achieving the prevention of adhesion and blockage by the loosening effect at the time of blast and instantaneous jet force.

    Installation work such as welding of injection nozzle is unnecessary

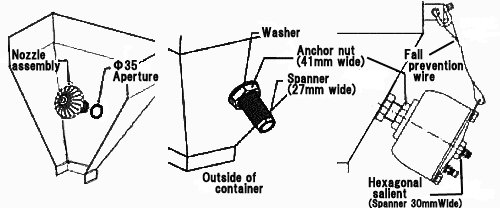

    The procedure for installing the pneumatic soft disk blaster is to drill a hole with a diameter of 35mm on the wall surface of hopper or tank, insert the attached intake pipe, and then install the soft disk inside the tank. Unlike large-size blaster, the nozzle welding is unnecessary, which reduces the construction cost. When installing the soft disc from outside of tank, drill a hole with an external diameter of 90mm or more that is larger than that of soft disk, mount the soft disk to the pressing board in advance, and then fix the pressing board to the tank with bolts.

    Soft disk (ESB100)

    Stainless steel main parts including tank and nozzle

    The main parts of pneumatic soft disk blaster are made of corrosion-resistant stainless steel materials. Therefore, rust does not take place from inside of tank or nozzle, which allows the blaster to be used continuously in a clean status. It can be used without disfigurement even If installed outdoors.

    Heat-resistant silicon disk

    The pneumatic soft disk blaster employs the flexible disk made of silicone (soft disk) as the portion that contacts with the workpieces (contents). Silicone rubber is excellent in heat resistance, and is suitable for the small hopper that processes incineration ashes and others as a site of high temperature. (Maximum operating temperature is 150℃)
    Safety data of silicone rubber
    1.Environmental impact Not included substances subject to US EPA ’33/50 Program’ and ‘Ozone Depleting Substance Control’.
    2.We do not use lead, arsenic, chrome, cadmium, mercury, etc. as specified by heavy metal content regulation, air pollution control law, and water pollution control law.

    Soft disk (ESB100)

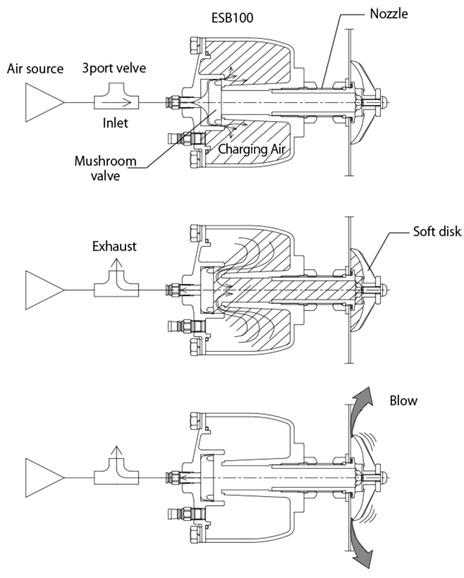

    Operating principle of ESB

    1.When the three-way valve is switched to the intake side, compressed air is supplied and the mushroom valve blocks the discharge port of nozzle to cause the compressed air to flow into the tank through a gap of the flange of mushroom valve.
    2.When the three-way valve is switched to the exhaust side, the compressed air in the mushroom valve is exhausted to cause the mushroom valve to be sucked to the charging side which instantaneously blasts the compressed air in the tank through the discharge port of nozzle.
    3.The compressed air blasted from the discharge port of nozzle blasts in all directions (360 degrees) while flowing into the inner surface of soft disk.

    Soft disk (ESB100)

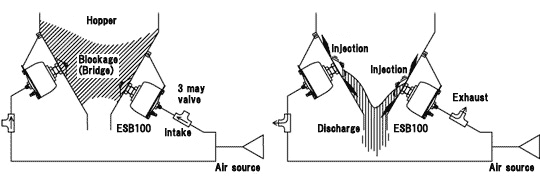

    Excellent performance of soft disk

    The pneumatic soft disk separates from the wall surface for a moment when the compressed air in the tank is exhausted, and the compression air keeps being exhausted until the moment of closing, which will not cause a trouble owing to the back stream of powder. Because the operation is performed inside the hopper, the operating sound does reach outside, resulting in low noise. Moreover, soft disk is made of rubber, which does not damage the object for which the blaster is installed.

    Soft disk (ESB100)
    Soft disk (ESB100)

    Control by air knocker control panel

    Relay piping is supported and the operation panel lineup dedicated to relay knocker can be used. One control panel can operate multiple knockers, which save the facility cost.
    *For the combination of flow aid system, also refer to “Flow aid equipment combination”

    Soft disk (ESB100)

    Specification

    ESB

    Model Working
    pressure
    (MPa)
    Stroke
    Cycle
    (time/min)
    Air
    consumption
    (N/time)
    Tank
    capacity
    (L)
    Material Available
    gas
    Drop prevension
    wire
    diameter×length
    (mm)
    Weight
    (kg)
    Vakve Soft
    ESB100 0.3~0.7 12 3~7 1.0 SUS Silicon Compressed air Φ2×350 5.5
    Installation requirements
    Diameter of discharge-jet
    installation opening
    (mm)
    Adaptation
    minimum radius
    (mm)
    Adaptation board
    thickness
    (mm)
    Body ambient
    temperature
    (℃)
    Hopper container
    inside temperature
    (℃)
    φ35 R150 2~9 -10~80 0~150

    (Imperial System)

    Model Working
    pressure
    (Psi)
    Stroke
    Cycle
    (time/min)
    Air
    consumption
    (ft3/time)
    Tank
    capacity
    (gal)
    Material Available
    gas
    Drop prevension
    wire
    diameter×length
    (in×ft)
    Weight
    (lb)
    Vakve Soft
    ESB100 43.5~101.5 12 0.10~0.25 0.3 SUS Silicon Compressed air Φ0.08×1’2″ 12.1
    Installation requirements
    Diameter of discharge-jet
    installation opening
    (in)
    Adaptation
    minimum radius
    (in)
    Adaptation board
    thickness
    (in)
    Body ambient
    temperature
    (℉)
    Hopper container
    inside temperature
    (℉)
    φ1.38 R5.9(Bore) 0.08~0.35 14~176 32~302

    * The control equipment is sold separately.
    * Please use inside the hopper container (soft disk side) within the range of 0 to 150 ° C.

    Dimensions, installation, control panel

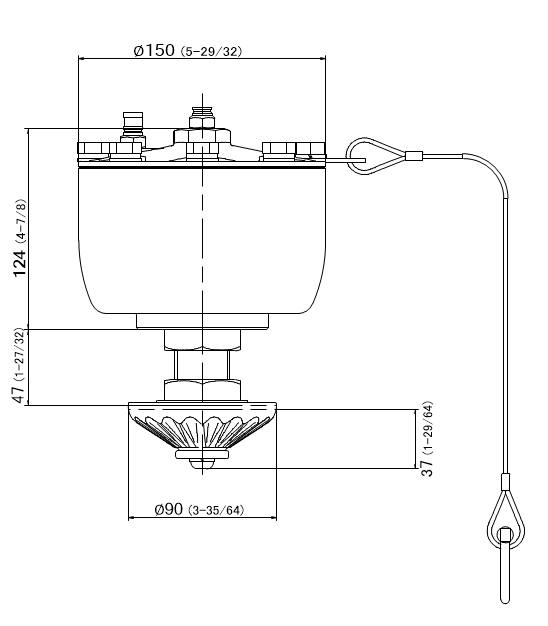

    ESB100 Product Dimensions mm (Inch)
