EXEN HBM60ZX Fin Head

Products Made In Japan
Manufacturer: EXEN
Model: HBM60ZX

The fin-like shape of the tip increases vibration transmission efficiency.

This product is used for the following applications:

  • Concrete placement in general
  • Features

    The fin head transmits powerful vibration in such a manner as to distribute aggregate equally by removing inner air bubbles and densify the concrete in order to realize strong concrete. The tip is fin-shaped to transmit powerful vibration.

    Tip shape: increasing compaction with a fin-shaped tip

    Tips of six fin shapes eliminate transmission losses in vibration energy, thereby transmitting vibration more efficiently than general round types. The reshaped tip also aims to reduce scattering of concrete when poured.



    Fin head

    Eco-friendly products

    The HBM series are eco-friendly.
    Cables are particularly eco-friendly, using environmentally friendly material. Cables used in HBM have successfully been reduced in weight by 10%.(From our earlier models.)
    *Environmentally friendly materials do not include chlorine or other halogen-based element that may generate harmful substances when incinerated or buried in landfill or a lead component that threatens to harm the human body. Materials used are easy to recycle.



    Fin head

    Easy maintenance

    The ZX type is a structure where a rotor is integrated with a vibrating shaft (except for the 30ZX).
    The VF type has its rotor as a separate part from its vibrating shaft to increase maintainability of the vibrating body.
    Both types allow disassembly as the bearings are assembled on the rotor and vibrating shaft, resulting in higher maintainability. The bearings used are filled with a proven, long-lasting grease.

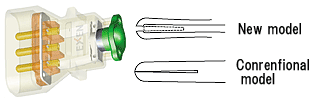

    Using a plug with new functions

    Burns in the motor due to the imperfect contact of the plug are reduced by using a super-tough pin in the developed EP plug. The super-tough pin is semi-permanently elastic, not causing imperfect contact in the plug.



    Fin head

    Stable vibration

    The unit incorporates a three-phase AC motor with smooth revolution and high output.
    (The single-phase AC motor is low in output and susceptible to uneven revolution.) With this, the HBM ensures stable, powerful vibration.

    Higher durability

    The tip and vibrating body, made of abrasion-resistant materials, are durable.

    Reducing vibration at hand

    The vibration balance of the HBM is adjusted to minimize vibration at hand. Moreover, the new hose absorbs some of the vibration, thereby reducing vibration at hand.



    Specification

    Fin head specification

    Model Output
    (W)
    Voltage
    (V)
    Current
    (A)
    Frequency
    (Hz)
    Total
    length (mm)
    Head length
    (dia×length)
    (mm)
    Hose length
    (dia×length)
    (mm)
    Weight
    (kg)
    HBM30ZX 130 48 3.5 200/240 6,350 31×376 28×6,000 9.6
    HBM40VF 250 5.5 6,502 43×348 33×6,000 12.1
    HBM50VF 400 9.0 6,551 52×397 36×6,000 16.1
    HBM60ZX 500 13.0 6,570 61×415 17.5

    (Imperial System)

    Model Output
    (W)
    Voltage
    (V)
    Current
    (A)
    Frequency
    (Hz)
    Total
    length (Hz)
    Head length
    (dia×length)
    (in)
    Hose length
    (dia×length)
    (in×ft)
    Weight
    (in)
    HBM30ZX 130 48 3.5 200/240 21’5″ 1.2″×1’3″ 11/16″×19’8″ 21.2
    HBM40VF 250 5.5 21’4″ 19/16″×1’2″ 1.3×19’8″ 26.7
    HBM50VF 400 9.0 21’6″ 2.0″×1’4″ 1.4×19’8″ 35.5
    HBM60ZX 500 13.0 21’7″ 23/8″×1’4″ 38.6

    *Product masses include that of the external cord (3.8 kg for 30ZX~40VF, 4.9 kg for 50VF~60ZX).
    *For “Selecting extension cables” and “Number of high-frequency vibrators that can be used simultaneously,” see the relevant page.

    Dimensions, installation, control panel

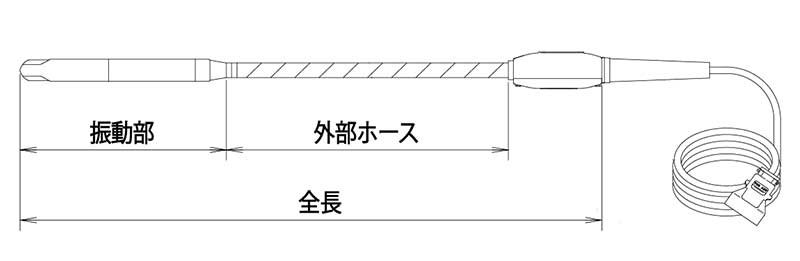

    Product dimensional drawings

    Product dimensional table

    Model Total length
    (mm)
    Head length
    (dia× length)
    (mm)
    Hose length
    (dia× length)
    (mm)
    HBM30ZX 6530 31×376 28×6000
    HBM40VF 6502 43×348 33×6000
    HBM50VF 6551 52×397 36×6000
    HBM60ZX 6570 61×415

    (Imperial System)

    Model Total length
    (ft)
    Head length
    (dia× length)
    (in×ft)
    Hose length
    (dia× length)
    (in×ft)
    HBM30ZX 21’5″ 1.2″×1’3″ 11/16″×19’8″
    HBM40VF 21’4″ 19/16″×1’2″ 1.3″×19’8″
    HBM50VF 21’6″ 2.0″×1’4″ 1.4″×19’8″
    HBM60ZX 21’7″ 23/8″×1’4″
