EXEN Vibration Motor EVUR-075 Series (8-Pole 3-Phase 200V)
Products Made In Japan
Manufacturer: EXEN
Model: EVSI-075 Series
A new model of 8-pole vibration motor that can be used in a wide range of applications from vibration feeders to vibration screens.
Features
It is widely used for transportation and sorting equipment by utilizing strong vibration.
Ideal as a drive source for various vibration devices
This motor has a large amplitude and is suitable as a drive source for transportation and sorting equipment.
Designed for water resistant structure
It is possible to use it in an environment where it is exposed to dust or water due to the design of a fully enclosed drip-proof structure with protection class IP66.
Specification
Model | Output | Voltage | Input Frequency | Current(A) | Frequency(Hz) | Centrifugal Force | ||
(W) | (V) | (Hz) | 50Hz | 60Hz | 50Hz | 60Hz | (kN) | |
EVUR 075-2110 | 1060 | 200 | 50/60 | 8.2 | 8.17 | 12.1 | 14.5 | 14.4 |
EVUR 075-3110 | 1460 | 10.8 | 10.3 | 12 | 21.1 | |||
EVUR 075-5300 | 2960 | 19 | 16.3 | 11.6 | 14 | 36 | ||
EVSI 075-10000 | 5300 | 26.4 | 25.2 | 12.5 | 15 | 76.4 | ||
EVSI 075-12000 | 5700 | 28 | 27.4 | 85.2 | ||||
EVSI 075-14000 | 7640 | 400 | 21 | 19.9 | 111 | |||
EVSI 075-17000 | 8940 | 22 | 20.9 | 132 | ||||
EVSI 075-22000 | 11000 | 26.5 | 25.2 | 177 | ||||
EVSI 075-30000 | 17000 | 34 | 32.4 | 207 |
Model | Cable Length | Weight |
(m) | (kg) | |
EVUR 075-2110 | N/A | 130 |
EVUR 075-3110 | 188 | |
EVUR 075-5300 | 268 | |
EVSI 075-10000 | 438 | |
EVSI 075-12000 | 540 | |
EVSI 075-14000 | 702 | |
EVSI 075-17000 | 755 | |
EVSI 075-22000 | 1015 | |
EVSI 075-30000 | 1125 |
*Over 750 W vibration motor does not include a cable.
Dimensions, installation, control panel

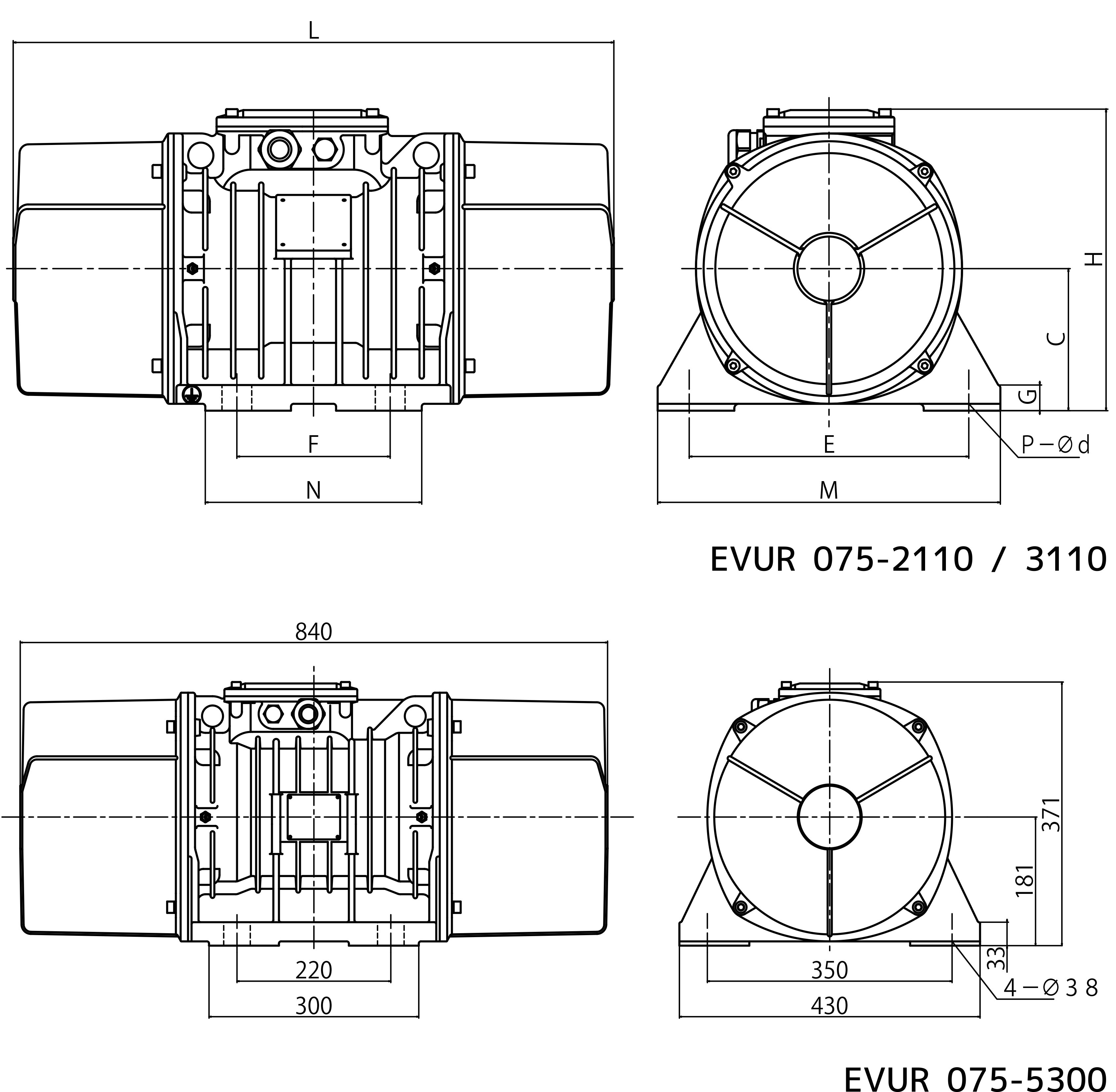

Product dimensional table
Model | E | F | G | C | H | L | N | M | P | φd |
---|---|---|---|---|---|---|---|---|---|---|
EVUR 075-2110 | 310 | 170 | 28 | 155 | 329 | 666 | 240 | 380 | 4 | 33 |
EVUR 075-3110 | 350 | 220 | 33 | 166 | 361 | 734 | 300 | 430 | 38 |
