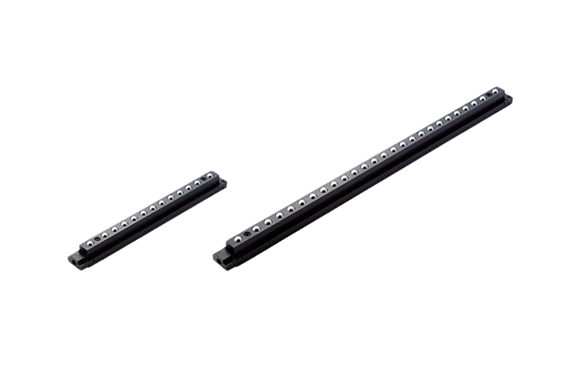

Freebear AFU-1932 Series
Manufacturer: Freebear Corporation Ltd.
Model: AFU-1932 Series

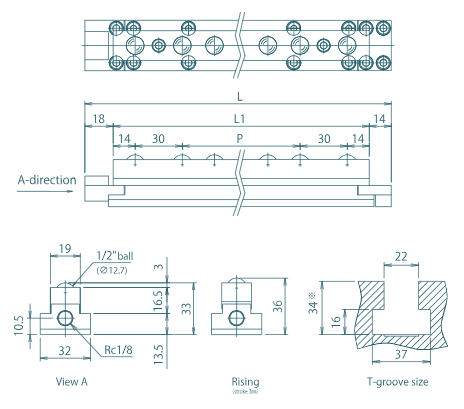

Specifications
※If the T-groove is deeper than 34mm, you need to adjust the height by installing a spacer underneath the AFU. In such case, make sure that the ball extrudes 2mm from the upper surface of the bolster when the AFU rises.

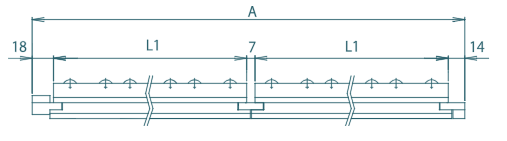

Connection dimension diagram
Calculation formula of full length A＝25＋（Sum of L1）＋（7×Number of connections）
Unit：mm
| Model | Body size（mm） | Weight | Operating air pressure | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | L1 | P | kg | 0.3MPa | 0.4MPa | 0.5MPa | 0.6MPa | |||||
| Load capacity | ||||||||||||
| kN | kgf | kN | kgf | kN | kgf | kN | kgf | |||||
| AFU-1932-325 | 325 | 293 | 10×P20.5＝205 | 1.5 | 0.98 | 100.0 | 1.18 | 120.3 | 1.57 | 160.1 | 1.96 | 199.9 |
| AFU-1932-580 | 580 | 548 | 23×P20＝460 | 2.6 | 1.96 | 199.9 | 2.36 | 240.7 | 3.14 | 320.2 | 3.92 | 399.7 |
| AFU-1932-680 | 680 | 648 | 28×P20＝560 | 3.1 | 2.21 | 224.9 | 2.65 | 270.2 | 3.53 | 360.0 | 4.41 | 449.7 |
