Manufacturer: Freebear Corporation Ltd.

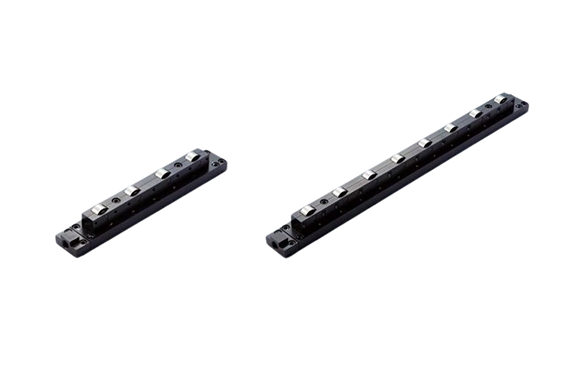

Model: ARU-2444 Series

Features

• The unit with built-in rollers rises and lowers through air pressure.
  Compared with the freebear unit, the roller has a smaller starting frictional resistance (μ) in the rotational direction and is suitable for the direction turn and right-angle transfer in production line.

Specifications

※If the T-groove is deeper than 46mm, you need to adjust the height by installing a spacer underneath the ARU.
In such case, make sure that the ball extrudes 2mm from the upper surface of the bolster when the ARU rises.

Connection dimension diagram

Calculation formula of full length A＝24.5＋（Sum of L1）

Unit：mm

Model	Body size（mm）				Weight	Operating air pressure
	L	L1	A1	P	kg	0.3MPa		0.4MPa		0.5MPa		0.6MPa
						Load capacity
						kN	kgf	kN	kgf	kN	kgf	kN	kgf
ARU-2444-300	297.5	228	273	1×P60=60	2.4	1.23	124.90	1.47	149.90	1.96	199.90	2.45	249.80
ARU-2444-540	537.5	468	513	5×P60=300	4.5	2.46	250.10	2.94	299.80	3.92	399.80	4.91	500.10
