FREEBEAR CORPORATION

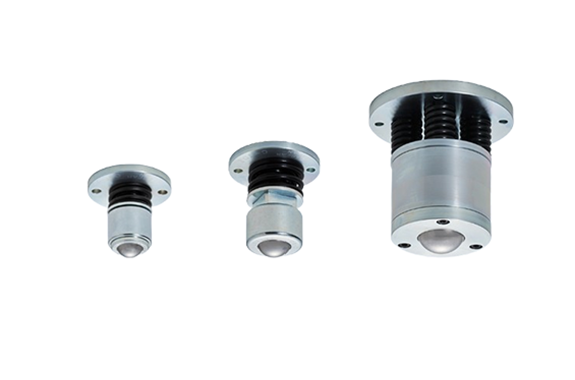

Freebear Corporation DZ Type Freebear
Manufacturer: Freebear Corporation Ltd.

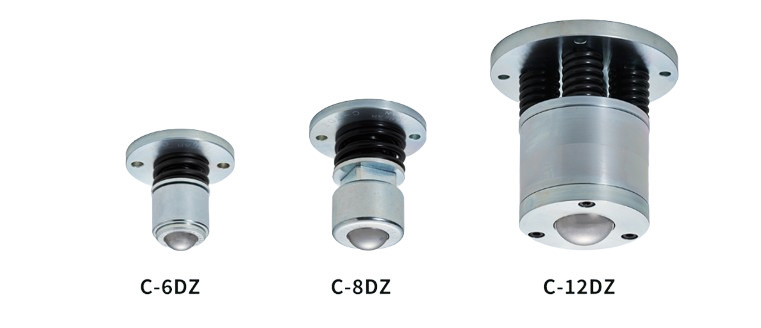

Model : DZ-type (C-6DZ / C-8DZ / C-12DZ)
Features
- Spring-type machined product.
- Specialized for downward-facing use, featuring a tray structure.
- The spring allows it to evenly distribute loads, even when there is an unbalanced load due to the shape of the transported item.
- It can also be used for positioning or as a substitute for casters.
| Model | Allowable load | Mounting strength | Max. strength | Main ball | Small ball | Body | Weight |
|---|---|---|---|---|---|---|---|
| C-6DZ | 50kg | 490N(50kgf) | 686N(70kgf) | Steel | Steel | Steel | 322g |
| C-8DZ | 80kg | 784N(80kgf) | 1029N(105kgf) | Steel | Steel | Steel | 672g |
| C-12DZ | 200kg | 1961N(200kgf) | 2548N(260kgf) | Steel | Steel | Steel | 3130g |

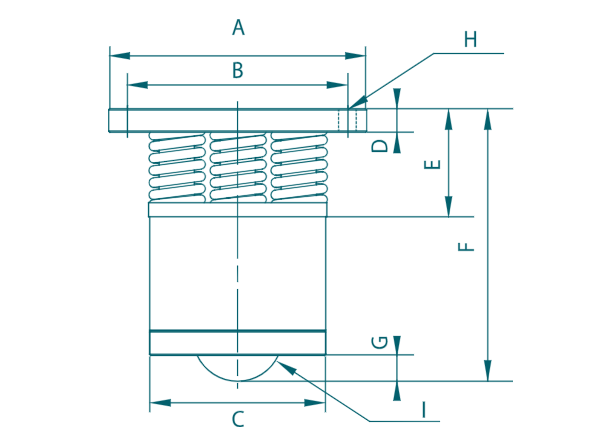

(Unit : mm)
| Model | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| C-6DZ | ∅60 | 47 | ∅31 | 6 | 24 | 56.5 | 6 | 2-∅6.5 | 3/4″ Ball(∅19.05) |
| C-8DZ | ∅70 | 55 | ∅42 | 6 | 33 | 78 | 7.5 | 2-∅6.5 | 1″ Ball(∅25.40) |
| C-12DZ | ∅110 | 94 | ∅75 | 10 | 46 | 116 | 11 | 4-∅6.5 | 1½″ Ball(∅38.10) |
※Product specifications are subject to change without prior notice. Please contact us for details.
※For materials not contained herein, please contact us.
※The main ball of the stainless steel products contained herein is made of SUS440C.Please consult us for rust prevention purposes.
