Freebear

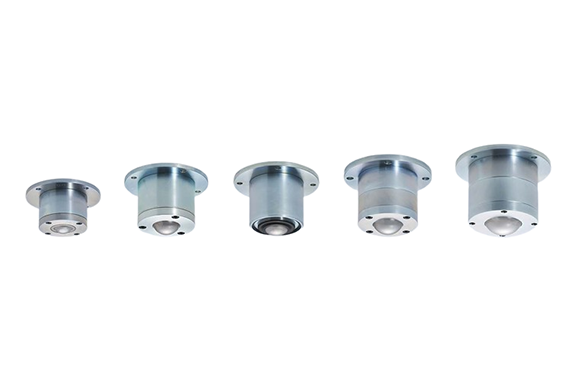

Freebear D-type Flange
Manufacturer: Freebear Corporation Ltd.
Model: D-Type Flange
Specifications
Unit：mm

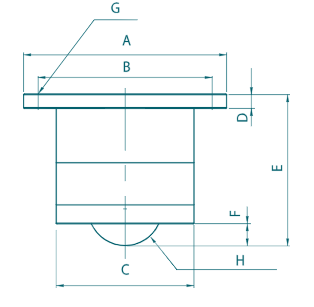

| Model | Allowable load | Max. load | Main ball | Small ball | Body | Weight | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-10D | 150kg | 300kg | Steel | Steel | Steel | 1733g | ∅110 | P.C.D.94 | ∅70 | 6 | 60 | 6.5 | 4-∅7 | 1¼″ Ball(∅31.75) |
| C-12D | 200kg | 400kg | Steel | Steel | Steel | 2342g | ∅110 | P.C.D.94 | ∅75 | 6 | 76 | 11 | 4-∅7 | 1½″ Ball(∅38.10) |
| C-12DR | 200kg | 400kg | Steel | Steel | Steel | 2080g | ∅110 | P.C.D.94 | ∅70 | 6 | 76 | 6 | 4-∅7 | 1½″ Ball(∅38.10) |
| C-16D | 300kg | 600kg | Steel | Steel | Steel | 5351g | ∅140 | P.C.D.120 | ∅95 | 10 | 105 | 15 | 4-∅11 | 2″ Ball(∅50.80) |
| C-24D | 500kg | 1000kg | Steel | Steel | Steel | 12500g | ∅180 | P.C.D.155 | ∅130 | 10 | 140 | 20 | 4-∅11 | 3″ Ball(∅76.20) |
※Product specifications are subject to change without prior notice. Please contact us for details.
※For materials not contained herein, please contact us.
※The main ball of the stainless steel products contained herein is made of SUS440C.Please consult us for rust prevention purposes.
