Freebear

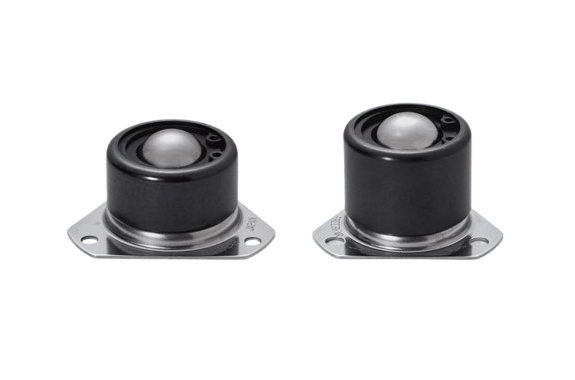

Freebear HC-Type
Manufacturer: Freebear Corporation Ltd.
Model: HC-Type
Specifications

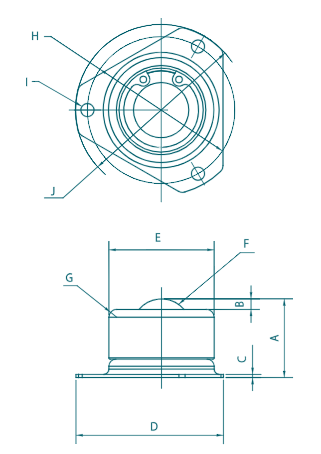

Unit：mm
| Model | Allowable load | Max. load | Main ball | Small ball | Small ball | Weight | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-7HC | 65Kg | 130kg | Steel | Steel | Steel | 207g | 30 | 4 | 1.2 | 56 | ∅40 | 7/8” （∅22.225） | R3 | P.C.D.56 | 3-∅5 | ∅65 |
| C-8HC | 80Kg | 160kg | Steel | Steel | Steel | 328g | 40 | 4 | 1.2 | 56 | ∅42 | 1” （∅25.4） | R3 | P.C.D.54 | 3-∅6 | ∅65 |
