Freebear

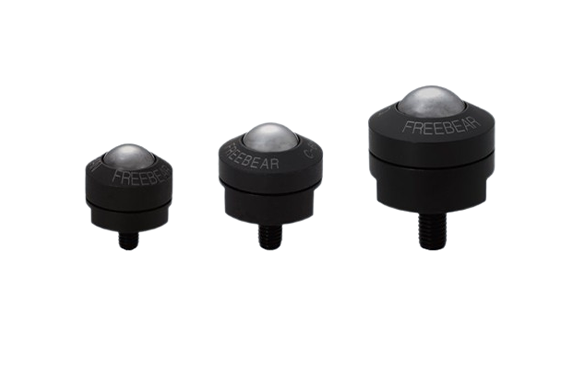

Freebear HQ-Type
Manufacturer: Freebear Corporation Ltd.
Model: HQ-Type
Specifications

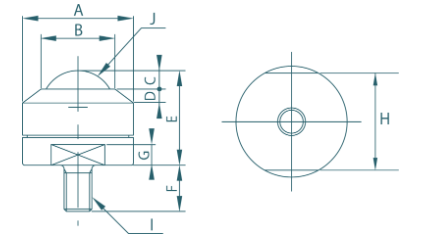

Unit：mm
| Model | Allowable load | Max. load | Main ball | Small ball | Body | Weight | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-5HQ | 196N （20kgf） | 392N （40kgf） | Steel | Steel | Steel | 51g | ∅24 | ∅16 | 4 | 3 | 20.5 | 10 | 4.5 | 21 | M6 | 5/8”Ball(∅15.875) |
| C-6HQ | 490N （50kgf） | 980N （100kgf） | Steel | Steel | Steel | 117g | ∅32 | ∅19 | 5 | 4 | 26 | 15 | 8.5 | 27 | M8 | 3/4”Ball(∅19.05) |
| C-8HQ | 785N （80kgf） | 1568N （160kgf） | Steel | Steel | Steel | 286g | ∅42 | ∅24 | 6.5 | 5.2 | 36 | 20 | 8 | 36 | M10 | 1”Ball(∅25.4) |
