Freebear

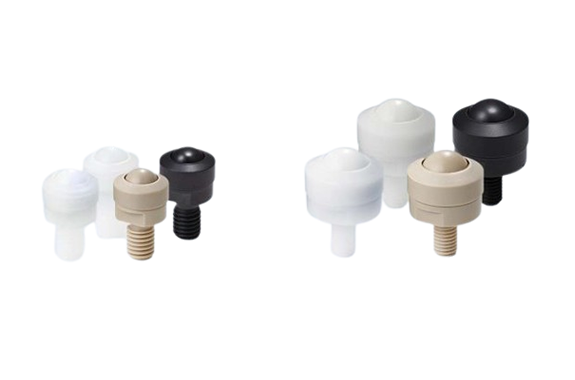

Freebear J-○H Series Clean Room
Manufacturer: Freebear Corporation Ltd.
Model: J-○H Series
Specifications
Unit：mm
| Model | Recommended load | Main ball・Body | Small ball | H | L | L1 | D | M | a | b | d |
|---|---|---|---|---|---|---|---|---|---|---|---|
| J-3H-POM-POM-CR | 1kg | POM | SUS304 | 14 | 12 | 2.5 | ∅15 | M8 | 4 | 11 | 3/8″ Ball（∅9.525） |
| J-3H-PEEK-PEEK-CR | PEEK | ||||||||||
| J-3H-PTFE-PTFE-CR | PTFE | ||||||||||
| J-3H-UPE-UPE-CR | UPE | ||||||||||
| J-3H-UPE static conductive- UPE static conductive-CR | UPE static conductive | ||||||||||
| J-5H-POM-POM-CR | 2kg | POM | 20.5 | 15 | 4 | ∅24 | M8 | 5 | 21 | 5/8″ Ball（∅15.875） | |
| J-5H-PEEK-PEEK-CR | PEEK | ||||||||||
| J-5H-PTFE-PTFE-CR | PTFE | ||||||||||
| J-5H-UPE-UPE-CR | UPE | ||||||||||
| J-5H-UPE static conductive- UPE static conductive-CR | UPE static conductive |
