Freebear

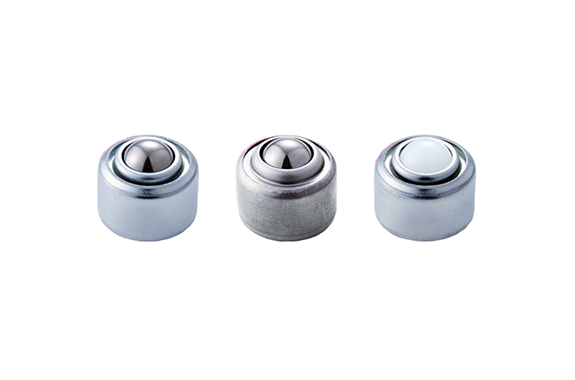

Freebear MF Seal
Manufacturer: Freebear Corporation Ltd.
Features
- Microfiber (MF seal) is used for the seal.
The coefficient of friction is lower than that of conventional rubber-sealed products, and the coefficient of friction during workpiece transfer is the same as that of free bears without a seal.
Specifications
Unit：mm
| Model | Allowable load | Mounting strength | Max. strength | Slip load | Main ball | Small ball | Body | Seal | Weight |
|---|---|---|---|---|---|---|---|---|---|
| C-3S-MF | 5kg | 5kg | 7kg | 0.3kg | Steel | Steel | Steel | Microfiber | 18g |
| S-3S-MF | 5kg | 5kg | 7kg | 0.3kg | SUS | SUS | SUS | Microfiber | 17g |
| P-3S-MF | 1kg | 1kg | 1.5kg | 0.1kg | Nylon | SUS | Steel | Microfiber | 12g |
