Freebear
Freebear S-Type
Manufacturer: Freebear Corporation Ltd.
Model: S-Type
Features
- Built-in spring type press-molded products adopting our proprietary technology.
- The load becomes uniform by means of the built-in spring, preventing uneven load caused by the shape of the conveyance object.
Specifications

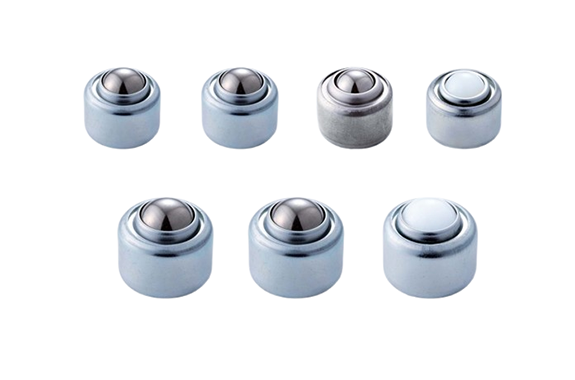

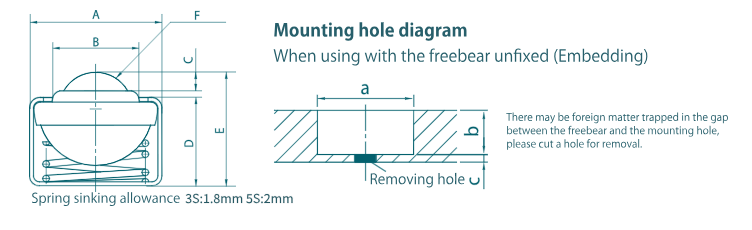

| Model | Allowable load | Mounting strength | Max. strength | Main ball | Small ball | Body | Weight | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-3S | 5kg | 49N(5kgf) | 68N(7kgf) | Steel | Steel | Steel | 18g | ∅20 | ∅13 | 2.8 | 13.4 | 17.2 | 7/16″ Ball(∅11.1125) |
| CS-3S | 5kg | 49N(5kgf) | 68N(7kgf) | SUS | SUS | Steel | 18g | ∅20 | ∅13 | 2.8 | 13.4 | 17.2 | 7/16″ Ball(∅11.1125) |
| S-3S | 5kg | 49N(5kgf) | 68N(7kgf) | SUS | SUS | SUS | 17g | ∅20 | ∅13 | 2.8 | 13.4 | 17.2 | 7/16″ Ball(∅11.1125) |
| P-3S | 1kg | 9.8N(1kgf) | 14.7N(1.5kgf) | Nylon | SUS | Steel | 12g | ∅20 | ∅13 | 2.8 | 13.4 | 17.2 | 7/16″ Ball(∅11.1125) |
| C-5S | 8kg | 78N(8kgf) | 107N(11kgf) | Steel | Steel | Steel | 37g | ∅25.8 | ∅17.5 | 3.7 | 17.5 | 23.6 | 5/8″ Ball(∅15.875) |
| CS-5S | 8kg | 78N(8kgf) | 107N(11kgf) | SUS | SUS | Steel | 37g | ∅25.8 | ∅17.5 | 3.7 | 17.5 | 23.6 | 5/8″ Ball(∅15.875) |
| P-5S | 2kg | 19.6N(2kgf) | 34.3N(3.5kgf) | Nylon | SUS | Steel | 21g | ∅25.8 | ∅17.5 | 3.7 | 17.5 | 23.6 | 5/8″ Ball(∅15.875) |

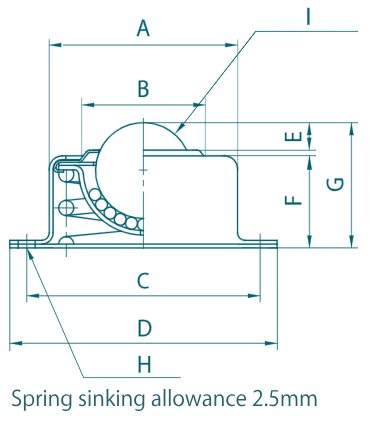

| Model | Allowable load | Mounting strength | Max. strength | Main ball | Small ball | Body | Weight | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

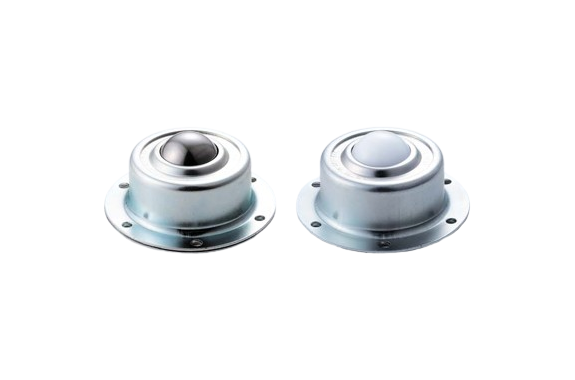

| C-8S | 20kg | 196N(20kgf) | 294N(30kgf) | Steel | Steel | Steel | 238g | ∅50 | ∅32 | P.C.D.62 | ∅71 | 7.3 | 25.2 | 34 | 3-∅4.5 | 1″ Ball(∅25.40) |
| P-8S | 5kg | 49N(5kgf) | 58.8N(6kgf) | Nylon | SUS | Steel | 161g | ∅50 | ∅32 | P.C.D.62 | ∅71 | 7.3 | 25.2 | 34 | 3-∅4.5 | 1″ Ball(∅25.40) |
※The weight of single conveyance object shall not exceed 1000 kg.
※Product specifications are subject to change without prior notice. Please contact us for details.
※For materials not contained herein, please contact us.
※The main ball of the stainless steel products contained herein is made of SUS440C.Please consult us for rust prevention purposes.
