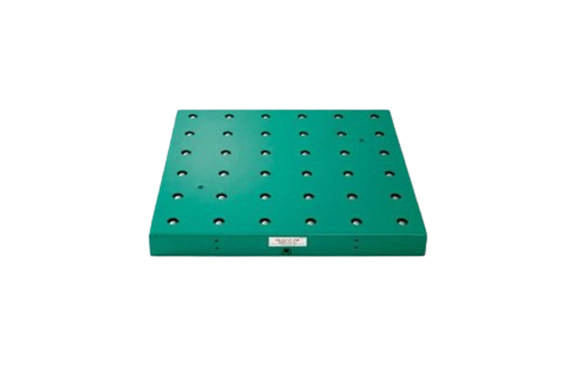

Freebear Table AFT-6, AFT-9 Air Lifting Type
Manufacturer: Freebear Corporation Ltd.
Model: AFT-6, AFT-9
Specifications
Unit：mm
| Model | Load capacity | A | B | C | D | E | X（Freebear） | Weight | Recommended air pressure |
|---|---|---|---|---|---|---|---|---|---|
| AFT-6 | 500kg＊ | 600 | 100Pitch×5=500 | 100Pitch×5=500 | 300 | 16 | C-8Y （Qty. :36） | 64kg | 0.50MPa (5.1kgf/cm2) |
| AFT-9 | 500kg＊ | 900 | 100Pitch×8=800 | 100Pitch×8=800 | 300Pitch×2=600 | 24 | C-8Y （Qty. :81） | 130kg |
＊Please contact us if the workpiece weighs more than 500kg.
※2 Only the guide mounting holes on the air supply port surface of AFT-9 shift 40mm to the left.
