Freebear

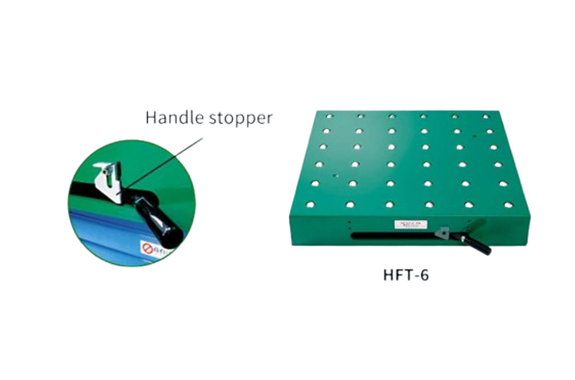

Freebear Table -Handle Lifting Type HFT-6, HFT-9
Manufacturer: Freebear Corporation Ltd.
Model: HFT-6, HFT-9
Specifications
Unit：mm
| Model | Load capacity | A | B | C | D | E | F | X（Freebear） | Weight |
|---|---|---|---|---|---|---|---|---|---|
| HFT-6 | 500kg＊ | 600 | 100Pitch×5=500 | 100Pitch×5=500 | 145 | 300 | 16 | C-8Y （36: Qty.） | 75kg |
| HFT-9 | 500kg＊ | 900 | 100Pitch×8=800 | 100Pitch×8=800 | 210 | 300Pitch×2=600 | 24 | C-8Y （81: Qty.） | 150kg |
＊Please contact us if the workpiece weighs more than 500kg.
