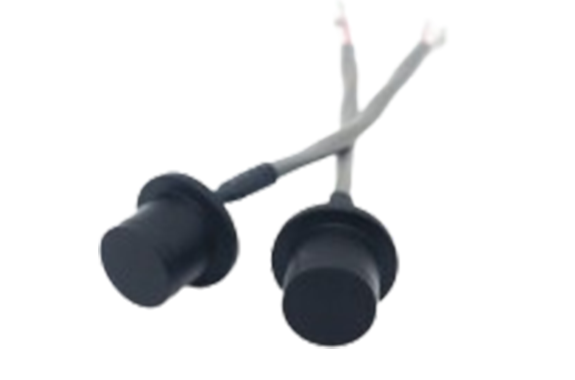

Fuji Ceramics FBS2Z5D-FC Air Bubble Sensor
Manufacturer: Fuji Ceramics Co., Ltd.
Model: FBS2Z5D-FC
Features
- An air bubble sensor detects air bubbles in liquid flowing through tubes.
- Ultrasonic waves pass through liquid but are blocked by bubbles, so bubbles are detected by changes in received signal strength.
- Because it detects without contacting the liquid, it reduces contamination risk and works with many liquids and tube materials.
Specifications
| Model | FBS2Z5D-FC |
| Nominal Frequency | 2 MHz |
| Transmit / Receive Sensitivity | −23 dB or higher |
| Electrostatic Capacitance | 280 pF |
| Outer Dimensions | D = φ10 mm × H = 10 mm |
| Lead Wire | AWG28 |
| Case Material | m-PPE |
◆ Intended Applications
- These sensors are used for detecting liquid depletion in tanks or avoiding air bubbles in various systems.
Typical use cases include:
Hemodialysis equipment
Liquid transfer pumps
Industrial inkjet printers, etc.
