Manufacturer: Fuji Ceramics Co., Ltd.
Model: FUC01A

Features

• We have started offering demo rentals for our ultrasonic cutter “FUC01A,” which uses our bolt-tightened Langevin type transducer.
• The blade attached to the cutter tip vibrates 40,000 times per second using our bolt-tightened Langevin type transducer, reducing friction during cutting and improving cutting performance.
• Compared with a standard cutter knife, this enables faster, easier cutting with significantly shorter processing time.
• We provide free demo rentals of the ultrasonic cutter for companies considering the development of processing machines using our bolt-tightened Langevin type transducer or for companies planning to purchase an ultrasonic cutter.
• The cutter can process a wide range of materials, including cloth, cardboard, cables, and acrylic boards.
• It cannot be used on materials that cannot be cut with a conventional cutter.
• Operation is simple and easy, requiring only turning on the power switch on the main unit.
• The included foot switch allows convenient on-and-off control of the light.
• The cutter delivers smooth cutting with a light touch and produces clean, high-quality cut surfaces.

Specifications

• The nominal oscillation frequency is 40 kHz.
• The rated power is 10 W.
• The maximum power consumption is 20 W.
• Frequency adjustment is automatically performed by PLL control.
• The power supply is AC 100 V at 50/60 Hz.
• The external dimensions of the oscillator (main body) are W141 × D138 × H51 mm, excluding protrusions.
• The handpiece dimensions are Φ26 × 165 mm, including the blade.
• The cable length is 1.5 m and uses a straight type.
• The oscillator (main unit) weighs approximately 690 g.
• The handpiece weighs approximately 90 g, including the blade, cable, and connector.
• Circuit protection includes a timed shutdown function of 5 minutes and an overvoltage shutdown function.

◆Cutting examples

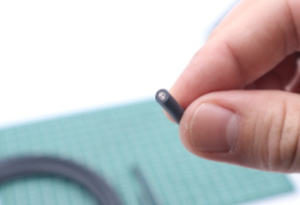

cable

magnetic sheet

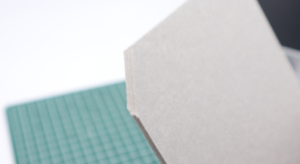

Cardboard (t=2.5mm)

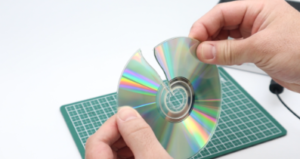

CD

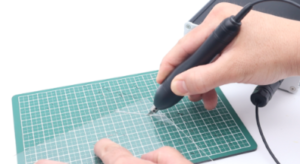

Acrylic plate (t=1mm)

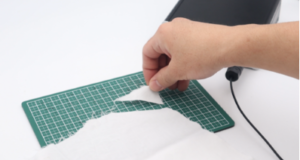

cloth
