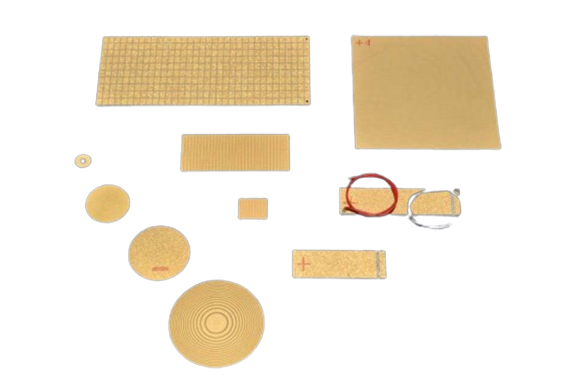

Fuji Ceramics Piezoelectric Composite Transducers
Manufacturer: Fuji Ceramics Co., Ltd.
Model: Piezoelectric
Features
- Wide bandwidth and high sensitivity.
- High damping performance.
- Low acoustic impedance.
- Flexibility
Specifications
| Item | Specifications |
| Piezoelectric material | Lead Zirconate Titanate Ceramics (PZT) |
| Electrode | Gold sputtering |
| Maximum dimensions | 70mm × 70mm |
| Resonance frequency range | ~15 MHz |
| Usage temperature range | 0 ~ +60°C |
◆ Applications
- Ultrasonic probe for NDT etc.
◆Standard Products List
| Model | Resonance Frequency MHz | Capacitance pF | Coupling Factors % | Acoustic Impedance Mrayl | Length mm | Width mm |
| 2C10×10S-WAuSpa | 2±5% | 750±20% | 62.5 | 9.30 | 10±0.1 | 10±0.1 |
| 5C10×10S-WAuSpa | 5±5% | 1800±20% | 61.5 | 9.30 | 10±0.1 | 10±0.1 |
| 10C10×10S-WAuSpa | 10±10% | 3500±20% | 60.0 | 8.90 | 10±0.1 | 10±0.1 |

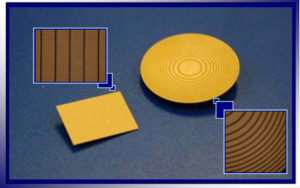

◆Phased-Array Type

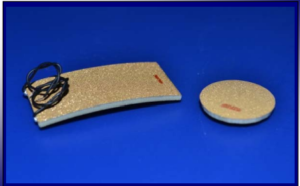

◆Focusing surface & Line focusing
