FUJI DIE

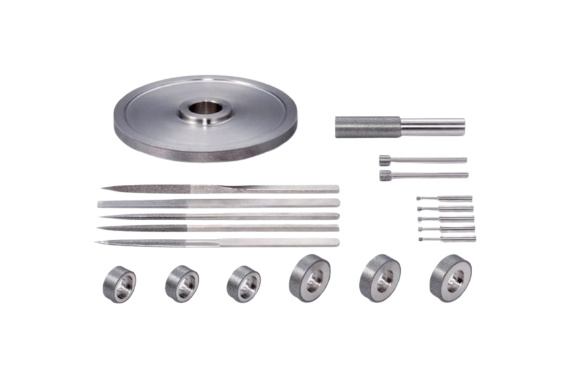

Fuji Die J Type Electroplated Grinding Tool
Manufacturer: Fuji Die Co., Ltd.
Model: J Type
Specifications And Dimensions (Unit : mm)
| Model No. | D | Y | L1 | L2 | T |
|---|---|---|---|---|---|
| J-10 | 1.0 | 6 | 50 | 10 | 3 |
| J-15 | 1.5 | 6 | 50 | 10 | 3 |
| J-20 | 2.0 | 6 | 50 | 10 | 3 |
| J-25 | 2.5 | 6 | 50 | 10 | 3 |
| J-30 | 3.0 | 6 | 50 | 15 | 3 |
| J-35 | 3.5 | 6 | 50 | 15 | 3 |
| J-40 | 4.0 | 6 | 50 | 20 | 3 |
| J-50 | 5.0 | 6 | 50 | 20 | 5 |
| J-60 | 6.0 | 6 | 50 | 20 | 5 |
| Model No. | D | Y | L | T |
|---|---|---|---|---|
| J-70 | 7.0 | 6 | 50 | 5 |
| J-80 | 8.0 | 6 | 50 | 5 |
| J-100 | 10.0 | 6 | 50 | 5 |
