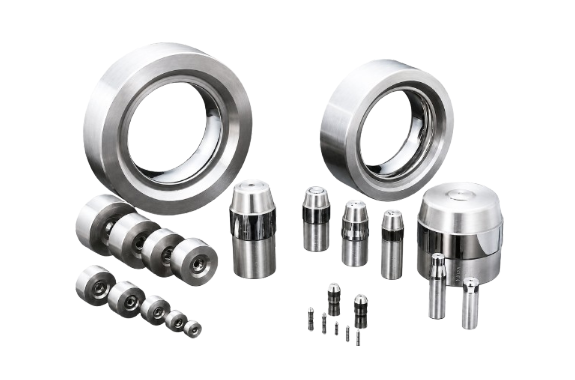

Fuji Die Tube Pipe Drawing Die And Plug MD Type For Soft Pipes
Manufacturer: Fuji Die Co., Ltd.
Model: MD Type

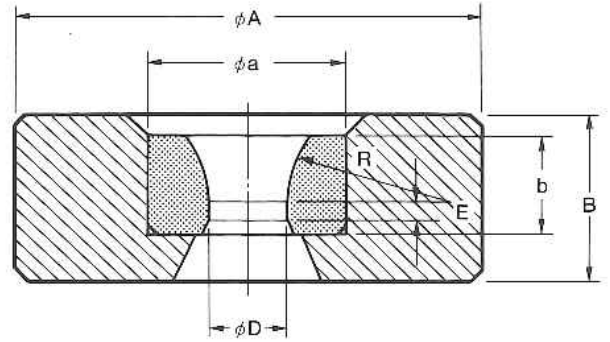

Specifications and Dimensions
| Model No. | D | a | b | E | R | A | B |
|---|---|---|---|---|---|---|---|
| MD 25 | ≤12 | 25 | 15 | 3 | 20 | 48 | 25 |
| MD 30 | 12~15 | 30 | 15 | 3 | 20 | 70 | 25 |
| MD 35 | 15~20 | 35 | 18 | 4 | 25 | 85 | 35 |
| MD 40 | 20~25 | 40 | 20 | 4 | 30 | 100 | 35 |
| MD 50 | 25~30 | 50 | 25 | 5 | 40 | 123 | 40 |
| MD 60 | 30~38 | 60 | 28 | 6 | 40 | 123 | 45 |
| MD 70 | 38~45 | 70 | 28 | 6 | 40 | 145 | 45 |
| MD 80 | 45~52 | 80 | 30 | 6 | 40 | 145 | 50 |
| MD 90 | 52~60 | 90 | 30 | 6 | 40 | 175 | 50 |
| MD 100 | 60~68 | 100 | 40 | 7 | 60 | 195 | 65 |
| MD 110 | 68~75 | 110 | 40 | 7 | 60 | 195 | 65 |
| MD 120 | 75~85 | 120 | 40 | 7 | 60 | 195 | 70 |
| MD 130 | 85~95 | 130 | 40 | 8 | 50 | 215 | 70 |
| MD 140 | 95~105 | 140 | 40 | 8 | 50 | 215 | 75 |
| MD 150 | 105~115 | 150 | 40 | 8 | 50 | 235 | 75 |
