Fukada Kogyo Co.,Ltd.
Fukada DH Water Fire Extinguishing Equipment
Manufacturer: Fukada Kogyo Co.,Ltd.
Model: DH
Features
| Overview | The DH type drencher head is a nozzle that sprays water in a fan shape and is used to spray water on the exterior surfaces of oil tanks, chemical plant facilities and important buildings to cool them and prevent the spread of fire. |
|---|---|
| Format | DH-* |

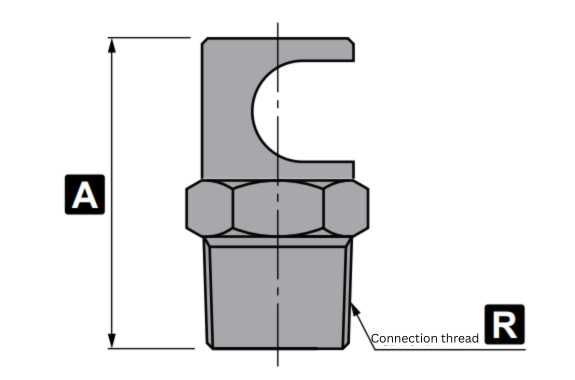

| Model | Pressure [MPa] | Flow rate [L/min] | Spray angle [°] | Dimensions [mm] | Connection thread |
|---|---|---|---|---|---|
| A | R | ||||
| DH-1-10-90°-04 | 0.1 | 10 | 90 | 40 | R1/2 |
| DH-1-20-90°-04 | 0.1 | 20 | 90 | 40 | |
| DH-1-30-90°-04 | 0.1 | 30 | 90 | 40 | |
| DH-1-40-90°-04 | 0.1 | 40 | 90 | 40 | |
| DH-1-10-120°-04 | 0.1 | 10 | 120 | 40 | |
| DH-1-20-120°-04 | 0.1 | 20 | 120 | 40 | |
| DH-1-30-120°-04 | 0.1 | 30 | 120 | 40 | |
| DH-1-40-120°-04 | 0.1 | 40 | 120 | 40 | |
| DH-1-10-150°-04 | 0.1 | 10 | 150 | 40 | |
| DH-1-20-150°-04 | 0.1 | 20 | 150 | 40 | |
| DH-1-30-150°-04 | 0.1 | 30 | 150 | 50 | |
| DH-1-40-150°-04 | 0.1 | 40 | 150 | 50 | |
| DH-1-50-150°-04 | 0.1 | 50 | 150 | 50 | |
| DH-5-111-150°-06 | 0.5 | 111 | 150 | 55 | R3/4 |
| DH-4-120-150°-06 | 0.4 | 120 | 150 | 55 |
