Fukada Kogyo Co.,Ltd.

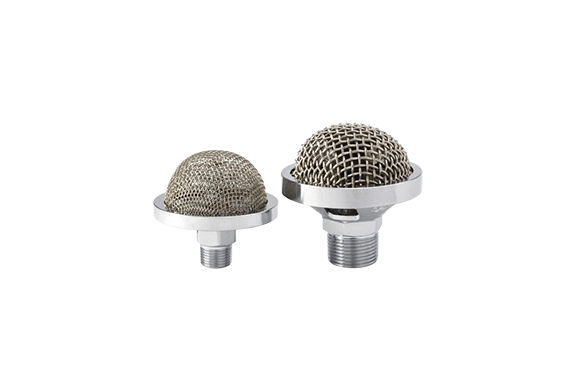

Fukada Kogyo FFH Foaming Machine
Manufacturer: Fukada Kogyo Co.,Ltd.
Model: FFH
Features
| Overview | This foam head is used in hazardous materials facilities such as storage facilities or manufacturing plants for Class 1, 2, and 4 hazardous materials. |
|---|---|
| Format | FFH-3.5-*W |
Specifications

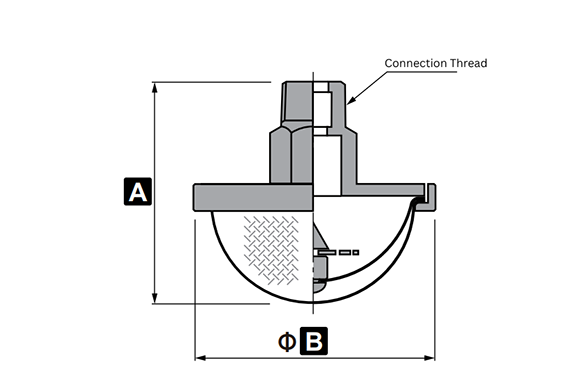

| Model Type | Output Volume [L/min] | Output Pressure [MPa] | A [mm] | B [mm] | Connection Thread |
|---|---|---|---|---|---|
| FFH-3.5-30W | 30 | 0.35 | 60 | 65 | R1/2 |
| FFH-3.5-35W | 35 | 0.35 | 60 | 65 | R1/2 |
| FFH-3.5-60W | 60 | 0.35 | 75 | 80 | R1/2 |
| FFH-3.5-70W | 70 | 0.35 | 75 | 80 | R1/2 |
| FFH-3.5-75W | 75 | 0.35 | 89 | 90 | R1 |
