Manufacturer: Fukada Kogyo Co.,Ltd.
Model: WQ
Features

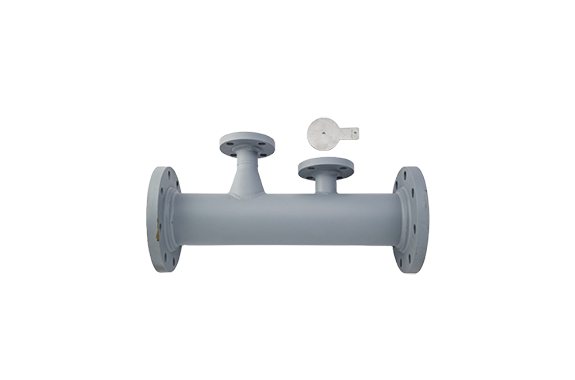

| Overview | This is a venturi-type proportional mixer used in pressure proportioner type mixing equipment, and functions to ensure that the mixture ratio of fire water and foam fire extinguishing agent is always constant. |
|---|
| Format | WQ-*F |
|---|

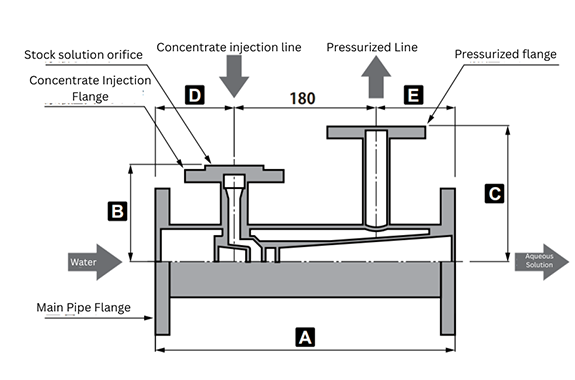

| Model Type | Suitable Mixed Flow [L/min] | Maximum Pressure Loss [MPa] | A [mm] | B [mm] | C [mm] | Connection Flange Size | Main Pipe |
|---|
| WQ 80F | 100~1000 | 0.2 | 380 | 120 | 170 | 80A | 25A |
| WQ 100F | 200~2000 | 0.2 | 560 | 130 | 180 | 100A | 40A |
| WQ 150F | 400~4000 | 0.2 | 650 | 175 | 225 | 150A | 50A |
| WQ 200F | 800~8000 | 0.2 | 950 | 200 | 250 | 200A | 65A |
