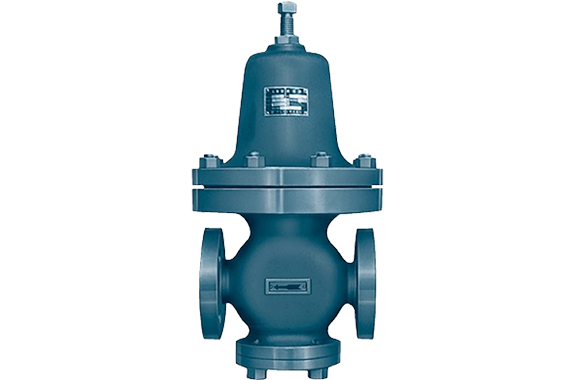

Fushiman All fluids AWR type back pressure valve

Model	Nominal diameter	Primary measurement pressure range	Maximum operating temperature	Body Material	Connection
AWR	15–50	0.03～2.0MPa	220℃	FC,, SCPH, SCS	Flanges

Simple structure, direct-acting back pressure valve.
Fewer failures and long lifespan.
When the diaphragm material is stainless steel, it is compatible with steam, gas, water, and liquids.

Specifications and Materials

Fluid	Primary Side Set Pressure Range (¹) (MPa)	Temperature (°C)	Main Component Materials					Pipe Connection
Fluid	Primary Side Set Pressure Range (¹) (MPa)	Temperature (°C)	Valve Body	Spring Cover	Lower Cover	Valve & Seat	Diaphragm	Pipe Connection
Air, Water, and Other Non-Corrosive Gases and Liquids	0.03～0.055 (Standard)	0～60 (²)	Cast Iron	Cast Iron	Cast Iron	Stainless Steel	Synthetic Rubber (¹)	Flange JIS 10K Full Face
	0.055～0.085		Cast Iron	Cast Iron	Cast Iron	Stainless Steel	Synthetic Rubber (¹)	Flange JIS 10K Full Face
	0.085～0.13		Cast Steel	Cast Iron	Carbon Steel	Stainless Steel	Synthetic Rubber (¹)	Flange JIS 20K Flat Face
	0.13～0.2 (Medium)		Cast Steel	Cast Iron	Carbon Steel	Stainless Steel	Synthetic Rubber (¹)	Flange JIS 20K Flat Face
	0.2～0.3		Cast Steel	Cast Iron	Carbon Steel	Stainless Steel	Synthetic Rubber (¹)	Flange JIS 20K Flat Face
Steam, Air, Water, and Other Non-Corrosive Gases and Liquids	0.3～0.45	0～220	Cast Iron	Cast Iron	Cast Iron	Stainless Steel	Stainless Steel	Flange JIS 10K Full Face
	0.45～0.7		Cast Iron	Cast Iron	Cast Iron	Stainless Steel	Stainless Steel	Flange JIS 10K Full Face
	0.7～1.0 (High)		Cast Iron	Cast Iron	Cast Iron	Stainless Steel	Stainless Steel	Flange JIS 10K Full Face
	1.0～1.6		Cast Steel	Cast Iron	Carbon Steel	Stainless Steel	Stainless Steel	Flange JIS 20K Flat Face
	1.4～2.0		Cast Steel	Cast Iron	Carbon Steel	Stainless Steel	Stainless Steel	Flange JIS 20K Flat Face

Note (¹): If the diaphragm is made of synthetic rubber, the set pressure should be 1.0 MPa or lower.
(²): For temperatures exceeding 60°C and up to 110°C, manufacturing is also available.

Remarks:

ASME Class 150・300 can also be manufactured.
Manufacturing with a stainless steel valve body is also available.

Performance

Parameter	Specification
Offset	10% or less of the maximum set pressure
Valve Seat Leakage	0.5% or less of the rated flow rate

Diaphragm Material	Nominal Diameter (mm)	Primary Side Set Pressure Range (MPa)
Diaphragm Material	Nominal Diameter (mm)	0.03～0.055	0.055～0.085	0.085～0.13	0.13～0.2	0.2～0.3	0.3～0.45	0.45～0.7	0.7
Synthetic Rubber	15	0.40	0.78	1.30	1.71	1.55	1.74	1.75	1.75
	20	0.42	0.82	1.38	1.79	1.82	2.20	2.28	2.28
	25	0.42	0.82	1.38	2.14	1.82	2.23	2.28	2.28
	40	0.70	1.34	2.23	3.88	2.72	3.70	3.36	3.36
	50	0.79	1.50	2.52	4.44	3.35	5.35	5.12	5.12
Stainless Steel	15	0.08	0.15	0.24	0.78	0.96	0.96	1.08	1.08
	20	0.09	0.17	0.30	1.10	1.11	1.11	1.11	1.11
	25	0.09	0.17	0.30	1.18	1.11	1.11	1.11	1.11
	40	0.21	0.41	0.66	1.49	1.58	1.64	1.64	1.64
	50	0.35	0.69	1.10	1.88	2.09	2.20	2.20	2.20

Remark: If the offset is 20% or less of the maximum set pressure, the Cv value will be twice the values listed in the table above.

Structure and Dimensions

Dimensions and Weight

Material / Flange	Nominal Diameter	L	Hi	h2	E	Mass
Cast Iron JIS 10K	15	186	89	320	225	25
	20	190	89	320		25
	25	190	89	320		28
	40	230	113	328		38
	50	250	127	336		40
Cast Steel / Stainless Steel / Cast Stainless Steel JIS 20K	15	182	93	320	225	27
	20	186	93	320		27
	25	186	93	320		30
	40	226	117	328		40
	50	246	131	336		45
