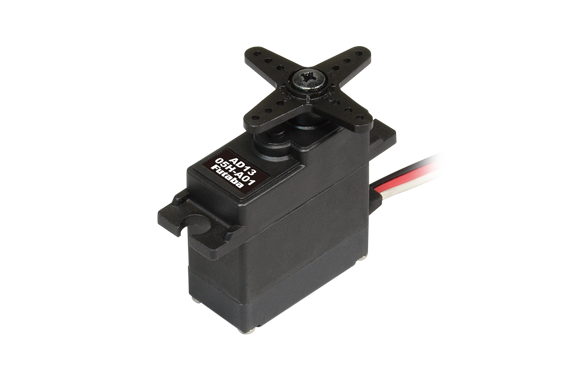

Futaba AD13 Series Industrial Servo
Manufacture: Futaba Corporation
Model: AD13 Series: AD13-05H-A01, AD13-05H-A21
Features
The AD13 series is a programmable servo based on the discontinued AD1AC. By connecting to a PC using the CIU-2/CIU-3 (sold separately) and using our dedicated servo setting change software “S-Link”, you can change the operating angle range.
Specification
| Model name | AD13-05H-A01 | AD13-05H-A21 |
|---|---|---|
| Rated voltage [V] | 4.8 | |
| Rated torque [N⋅m] | 0.073 (at 4.8V) | |
| Maximum torque (instantaneous) [N⋅m] | 0.39 (at 4.8V) | |
| No-load rotation speed [min-1] | 43 (at 4.8V) | |
| Operating angle range (°) | ±50 (±75 with setting change) | |
| Case Material | Upper: Resin Middle: Resin Bottom: Resin | |
| Gear Material | 1st: Resin 2nd: Metal 3rd: Metal Final: Metal | |
| Connection cable | Fixed unshielded cable | |
| Cable length [mm] | 170 | |
| Connector part | 3-pole connector | 3-pole connector + 2 wires |
| Dimensions (W x L x H) [mm] | 28.0×13.0×29.7 | |
| Control and communication standards | PWM | PMW/S.BUS2 |
| Operating temperature [℃] | -10 to +45 | |
| Weight [g] | 20 | |
| Position Feedback | none | Yes |
