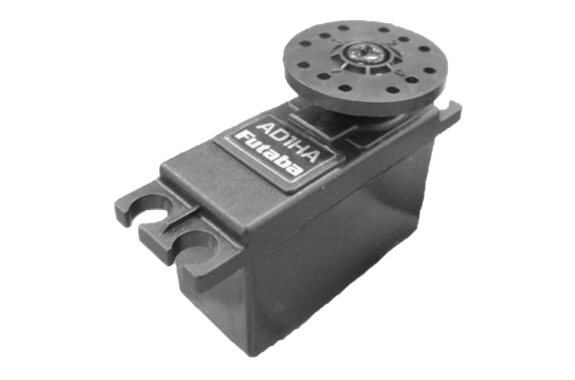

Futaba AD1HA Industrial Servov
Manufacturer: Futaba Corporation
Model: AD1HA
Features
This is a servo module with metal gears for low speed operation and high torque. It is ideal for high torque applications with a wide angle (±90°).
Specification
| Model name | AD1HA |
|---|---|
| Rated voltage [V] | 4.8 |
| Maximum torque [kgf⋅cm] | 7.0 (at 4.8V) |
| Maximum speed [s/60°] | 0.57 (at 4.8V) |
| Case Material | Upper: Resin Middle: Resin Bottom: Resin |
| Gear Material | 1st: Resin 2nd: Metal 3rd: Metal 4th: Metal Final: Metal |
| Connection cable | Fixed unshielded cable |
| Cable length [mm] | 180.0 |
| Connector part | 3-pole connector |
| Dimensions (W x L x H) [mm] | 34.5×16.0×25.8 |
| Control and communication standards | PWM |
| Operating temperature [℃] | 0 to +45 |
| Weight [g] | 26.0 |
Control and Communication Standards
It supports the following standards, assuming connection to Futaba RC receivers and various other controllers:
PWM: PWM signals used in conventional hobby RC servos .
Dimension
