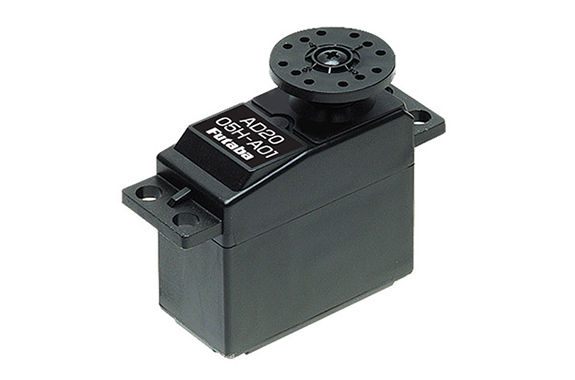

Futaba AD20-05H-A01 Industrial Servo
Manufacture: Futaba Corporation
Model: AD20-05H-A01
Features
This is a general-purpose servo module that supports Futaba’s original S.BUS protocol.
Using the CIU-3 (sold separately), you can change the default operating angle and set free and hold modes.
Recommended for areas where replacement is frequent or for low-cost applications.
Specification
| Model name | AD20-05H-A01 |
|---|---|
| Rated voltage [V] | 6.0 |
| Rated torque [N⋅m] | 0.12 |
| Maximum torque (instantaneous) [N⋅m] | 0.40 |
| No-load rotation speed [min-1] | 53 |
| Dustproof/waterproof structure | IP40 |
| Case Material | Upper: Resin Middle: Resin Bottom: Resin |
| Gear Material | 1st: Resin 2nd: Resin 3rd: Resin Final: Resin |
| Connection cable | Fixed unshielded cable |
| Cable length [mm] | 300.0 |
| Connector part | 3-pole connector |
| Dimensions (W x L x H) [mm] | 40.5×20.0×36.1 |
| Control and communication standards | PWM / S.BUS / S.BUS2 |
| Operating temperature [℃] | -20 to +60 |
| Weight [g] | 36.0 |
Control and Communication Standards
Intended for connection to Futaba RC receivers and various other controllers, the controller supports the following standards:
・PWM: PWM signal used in conventional hobby RC servos
・S.BUS: Futaba’s proprietary serial communications protocol for hobby RC servos
Each communication format cannot be used simultaneously.

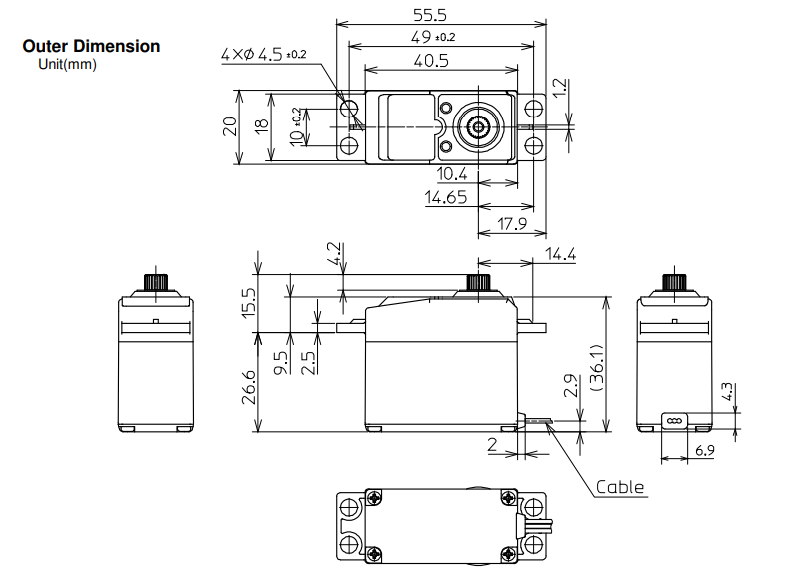

Dimension
