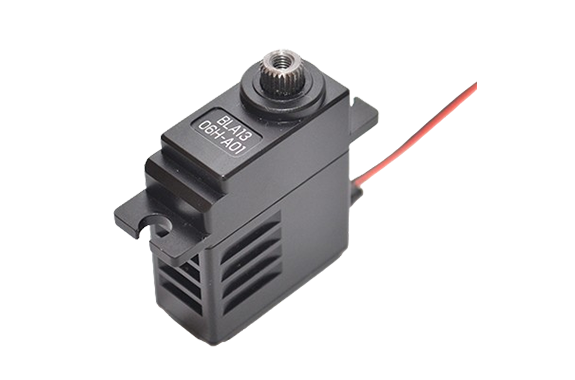

Futaba BLA13-06H-A01 Industrial Servo
Manufacture: Futaba Corporation
Model: BLA13-06H-A01
Features
This product is a small actuator (servo module) designed for use in drone ailerons and robots, and features a full metal case for heat dissipation, long life, and high durability (non-contact potentiometer and brushless motor). It is also compatible with Futaba’s proprietary S.BUS/S.BUS2 systems.
Specification
| Model name | BLA13-06H-A01 |
|---|---|
| Rated voltage [V] | 7.4 |
| Rated torque [N⋅m] | 0.16 |
| Maximum torque (instantaneous) [N⋅m] | 0.80 |
| No-load rotation speed [min-1] | 77 |
| Case Material | Upper: Aluminum Middle: Aluminum Bottom: Aluminum |
| Gear Material | 1st: Metal 2nd: Metal 3rd: Metal Final: Metal |
| Connection cable | Fixed unshielded cable |
| Cable length [mm] | 150.0 |
| Connector part | 3-pole connector |
| Dimensions (W x L x H) [mm] | 28.6×13.0×32.6 |
| Control and communication standards | PWM / S.BUS / S.BUS2 |
| Operating temperature [℃] | -30 to +70 |
| Weight [g] | 35.0 |
Control and Communication Standards
Intended for connection to Futaba RC receivers and various other controllers, the controller supports the following standards:
・PWM: PWM signal used in conventional hobby RC servos
・S.BUS: Futaba’s proprietary serial communications protocol for hobby RC servos
Each communication format cannot be used simultaneously.

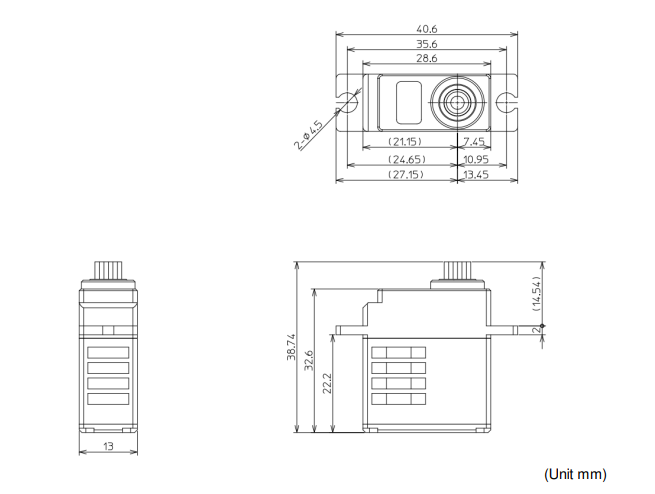

Dimension
